LH417

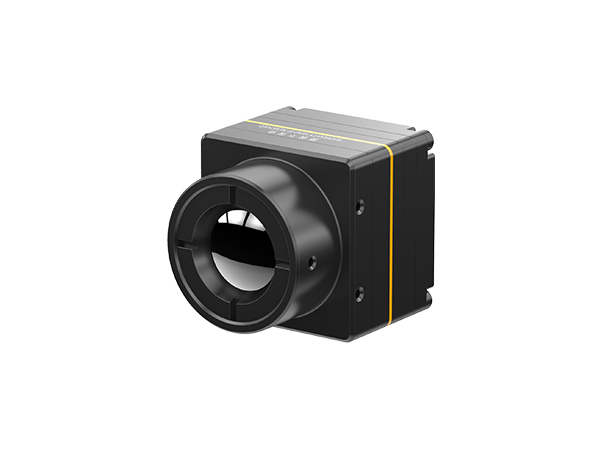

New Generation LH417 384×288 VOx Uncooled Thermal Module
LH417 uncooled infrared module is a new generation version of LH417 developed by XINGHE. It integrates 384x288/17μm wafer level package (WLP) infrared imaging detector, high performance signal processing circuit and image processing algorithm.

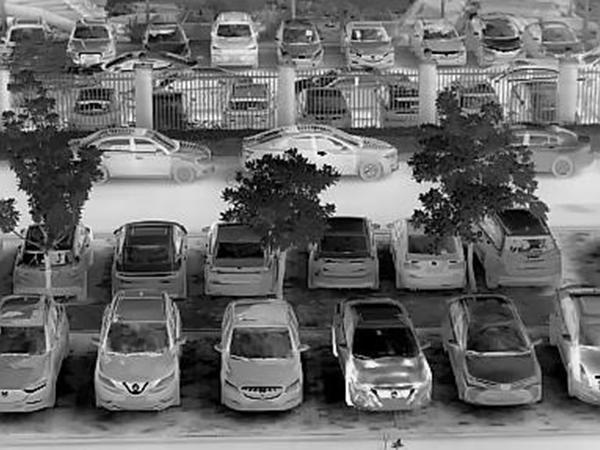

The LH417 infrared module features in sharp and crisp thermal image presentation, compact size and low cost. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.
Until now, we have provided our customers with various mature and stable infrared thermal imaging solutions. It’s easier for LH series thermal imaging common module to be integrated into more terminal products and greatly reduces the cost for customers.
Outstanding Performance
• Powerful image process algorithm: NUC/3DNR/DNS/DRC/EE
• With range of -20℃～150℃, 0~550℃ (support customization & expansion)
Higher Efficiency
• With start-up time at 3s and power consumption as low as 0.75W
Faster Integration
• Support USB2.0/DVP/LVDS image output interfaces, RAW/YUV image data output, serial port control
Model | LH417/R |
IR Detector Performance | |
Sensitive Material | Vanadium Oxide |
Resolution | 384×288 |
Pixel Size | 17μm |
Spectral Range | 8μm~14μm |
Typical NETD | ≤40mK |
Image Processing | |
Frame Rate | 50Hz/30Hz/25Hz |
Start-up Time | 5s |
Analog Video | PAL/NTSC |
Digital Video | YUV/BT.656/LVDS/USB2.0 |
Image Algorithm | Non-uniformity Correction (NUC) |
Image Display | Black Hot/White Hot/Pseudo Color |
PC Software | |
ICC Software | Module Control & Video Display |
Electrical Specifications | |

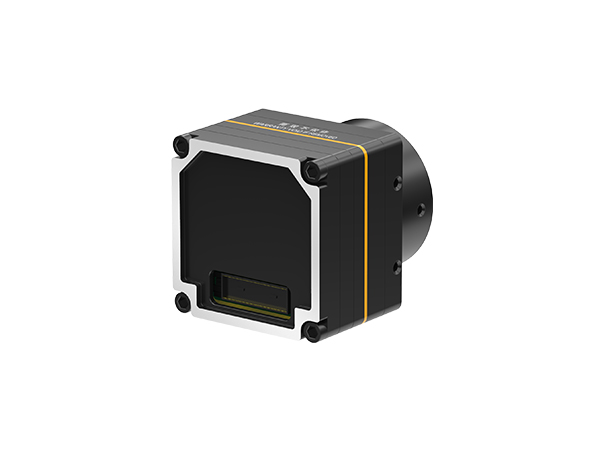

Standard External Interface | 50Pin_HRS: DF40C-50DP-0.4V(51), (HRS, Male） |
USB Expansion Board | Type-C |
Communication Interface | TTL-232/USB2.0 |
Digital Video Interface | CMOS8/CMOS16/LVDS/USB2.0 |
Supply Voltage | 4~5.5V |
Typical Power Consumption | 0.75W |
Temperature Measurement | |
Operating Temperature Range | -10℃~+50℃ |
Temperature Measurement Range | -20℃~150℃, 0℃~550℃; Support Customization and Expansion |
Temperature Measurement Accuracy | Greater of ±3℃ or ±3% |
Regional Temperature Measurement | Support Maximum, Minimum and Average Value of the Output Regional Temperature |
SDK | Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
Physical Characteristics | |
Size (mm) | 25.4×25.4×16 (Without Lens) |
Weight | 12.8g (Without Lens) |
Environmental Adaptability | |
Operating Temperature | -40℃～+70℃ |
Storage Temperature | -45℃～+85℃ |
Humidity | 5%~95%, non-condensing |
Vibration | 5.35grms, 3 Axis |
Shock | Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction |
Certificates | ROHS2.0/REACH |
Optics | |

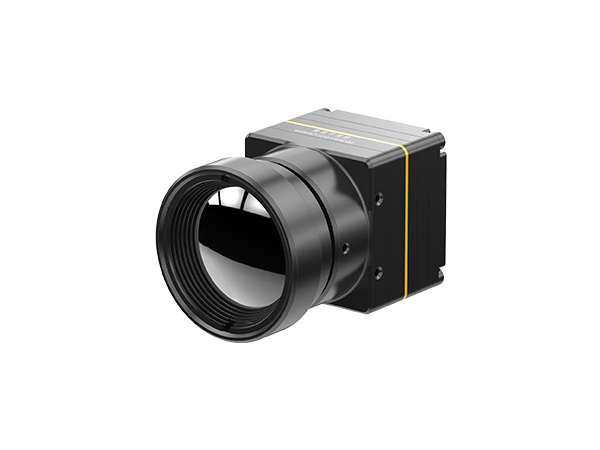

Optional Lens | Fixed Focus Athermal: 4.9mm/9.1mm/13mm/19mm/25mm |
Protection Level | IP67 Rating (Front Lens) |
