Vehicle384

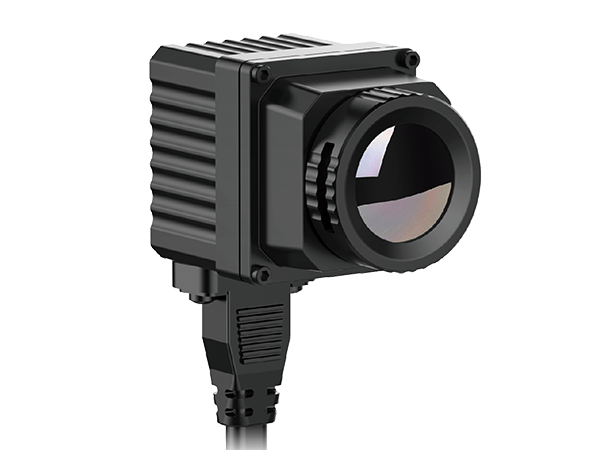

384×288 VOx Uncooled Thermal Module for Autonomous Vehicles
Vehicle384 is one of the vehicle-mounted infrared modules developed by Xinghe. It integrates 384×288/17μm uncooled LWIR detector and can be used to enhance driver's visual capability in harsh environment such as total darkness, rain, snow, fog, dust etc.
With Vehicle384 automotive thermal camera, drivers can see clear image 300 meters away beyond the reach of vehicles' headlights and enhance their field of view so as to better avoid obstacles and identify targets. It provides intelligent alarm based on a lot of model trainings and a set of mature AI algorithms to identify pedestrians, cyclists, vehicles and give warning in advance.
This vehicle mounted thermal camera is also effective to eliminate the interference of high beams from oncoming vehicles, increasing drivers' perception towards the surrounding environment and seeing distance in darkness or bad weather so that the safety of drivers, passengers, pedestrians and vehicles can be guaranteed.
A Great Distance of View
• See clear image 300 meters away beyond the reach of vehicles' headlights
• Enhance drivers' field of view so as to better avoid obstacles and identify targets
Intelligent Alarm
• Base on a lot of model trainings and own a set of mature AI algorithms
• Identify pedestrians, cyclists, vehicles and give warning in advance
All-weather Application
• Anti-glare interference from oncoming vehicles in dark night
• Get clear image in harsh environment such as rain, snow, fog and dust
Easy to be Integrated
• Support UDSonCAN Protocol (iDAS 384 S)
High Reliability & Stability
• Meet IP67 protection level
ADAS
Model | Vehicle384 |
IR Detector Performance | |
Resolution | 384×288 |
Pixel Size | 17μm |
Spectral Response | 8~14μm |
Typical NETD | ＜40mk |
Image Display Performance | |
Focal Length | 9.7mm |
Field of View | 37°×28° |
Video Output Format | FPD-Link Ⅲ |
Output Image Frame Rate & Resolution | DV 384×288@50Hz |
System Features | |
Start-up Time | ≤8s (Room Temperature） |
Heater | When the Window Temperature is Lower than 2℃±2℃, Start Heating by itself |
Compensation Algorithm | Automatic Shutter Compensation |
Image Algorithm | Automatic Brightness Contrast / Image Enhancement |
Communication Interface | RS232, Baud rate: 115200bps |
Pedestrian / Vehicle Detection | Pedestrian & Vehicle Detection |
Electrical Features | |
Supply Voltage | DC8V±0.5V |
Overall Power Consumption | ≤2W@8V Power Supply, Window Heating is off |
Operating Range | |
Identification Range | Person: 1.8m×0.5m ≥150m |
Recognition Range | Person ≥80m Car ≥100m |
External Cable Connection | |
Cable Length | 4m |
Standard External Interface | Power Supply+Video+Serial port: |
Physical Characteristics | |
Size (mm) | 36.0×36.0×52.0 (Without Cable) |
Weight | 140g±3g (Without Cable) |
Environmental Adaption | |
Operating Temperature | -40°C~+85°C |
Storage Temperature | -45°C~+90°C |
Environmental Test | Salt Spray: ISO16750-4 |
Reliability Test | Vibration: ISO16750-3, Grade A |
Package | Sealed Case IP67 |
Certification | |
EMC | / |
