MED417

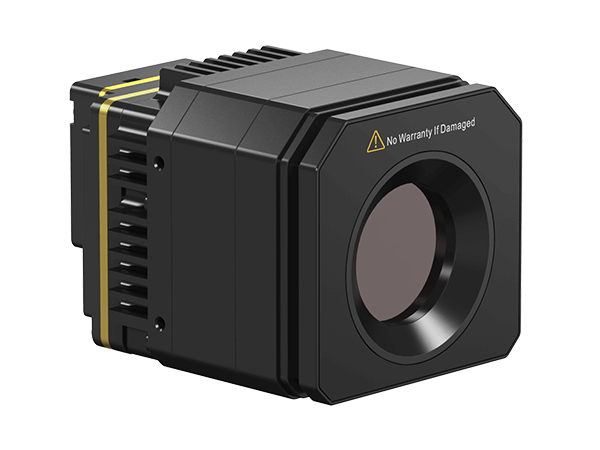

MED417 Infrared Module Specially Developed for IR Fever Sensing System
MED417 uncooled infrared thermal camera is specially developed for infrared (IR) fever sensing system in order to measure human body temperature anytime and anywhere. It consists of 384×288/17μm infrared detector, 7mm infrared optical lens and a specialized SDK for human body temperature measurement.
Data captured by MED417 can be transferred to the back-end integration platform via 50-pin or USB3.0 interface to achieve the display of full-screen temperature data and infrared thermal image and many other functions. With such infrared thermal imaging module, customers could develop and integrate their own IR fever sensing system quickly and efficiently.
The MED417 thermal camera is specially developed for elevated skin temperature screening. It is easy to be integrated into infrared thermographic system which has been used for fighting against COVID-19 and fast to detect elevated body temperature in places that have large volume of people, such as airports, subways, train stations, schools, shopping centers etc.
Non-contact Temperature Measurement
• ±0.5℃ high precision temperature measurement without external black body
• Detect distance: 0.5m (for medical diagnosis); 5m (for epidemic prevention and animal thermography)
Fast Integration into System
• An all-in-one standard Type-C interface with power supply, data transmission and control
• Support Windows/Android/Linux SDK; Achieve video stream analysis and conversion from gray to temperature
Model | MED417 |
IR Detector Performance | |
Resolution | 384×288 |
Pixel Size | 17μm |
Spectral Range | 8~14μm |
Typical NETD | ＜30mk |
Image Processing | |
Frame Rate | 25Hz |
Start-up Time | 10s |
Digital Video | RAW/YUV |
Image Display | Black Hot/White Hot/Pseudo Color |
Image Algorithm | NUC/AGC/IDE |
Electrical Specification | |
Standard External Interface | Type-C |
Communication Mode | USB |
Supply Voltage | 5±0.5V |
Typical Power Consumption | 1.5W |
Temperature Measurement | |
Operating Temperature Range | -10°C ~ +50°C |
Temperature Measurement Range | 20℃ ~ 50℃ |
Temperature Measurement Accuracy | ≤±0.5℃ (No wind indoor, target temperature range 32℃~42℃) |
Measuring Distance | Two Modes: 0.5m or 5m |
SDK | Support Windows/Android/Linux SDK, Realize Video Stream Analysis, Module Control, Comprehensive Array Temperature Measurement, Temperature Imaging, Temperature Window Setting, Multiple Integration |
Physical Characteristics | |
Size (mm) | 44.5×42.5×58.9 (with 7mm lens） |
Weight | 123g（with 7mm lens ） |
Environmental Adaptability | |
Operating Temperature | -40°C ~ +70°C |
Storage Temperature | -45°C ~ +85°C |
Humidity | 5%~95%, non-condensing |
Vibration | Random Vibration 5.35grms, 3 Axis |
Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
Optics | |
Optional Lens | Fixed Focus Athermal: 7mm/9.7mm |
Certificate | |
Standard | ROHS/REACH |
