MED417W

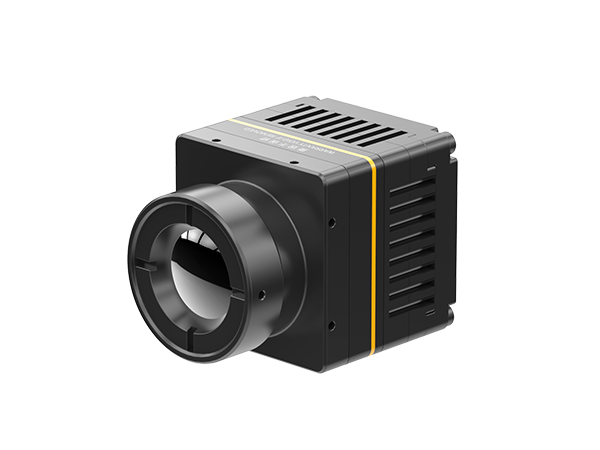

MED417W thermal module is specially developed for medical diagnosis. It is integrated with self-developed wafer level packaging 384×288/17μm infrared detector, 9.1mm lens, 30pin standard interface (Optional Type-C expansion board) and SDK for temperature measurement with accuracy up to ±0.5℃. The captured temperature data and heat distribution of target can be used to achieve radiation-free, non-invasive early disease diagnosis and long-distance, large-scale body temperature screening.

With typical NETD<40mk/f1.0/25℃, and temperature uniformity ≤±0.3℃ (better than the industry average of ±0.5℃), the overall thermal imaging uniformity of MED417W thermal imaging module is better, and its temperature measurement function is more stable.

Without external black body, the MED417W thermal imaging module has a compact & light structure, which guarantees a lower integration cost. iHA417W thermal camera module has an all-in-one standard Type-C interface with power supply, data transmission and control, customers can quickly develop and integrate various temperature measuring systems like medical diagnosis and epidemic prevention.

The MED417W thermal camera module can be quickly integrated into various medical thermal imaging devices, and it is expected to be widely used in the fields of Disease Screening, Traditional Chinese Medicine Physiotherapy, Health Check-up, Rehabilitation etc. at present and in the future.
