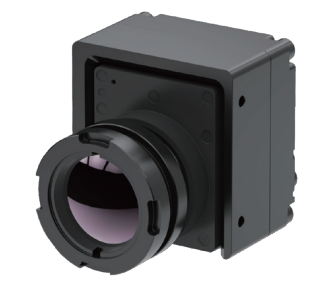

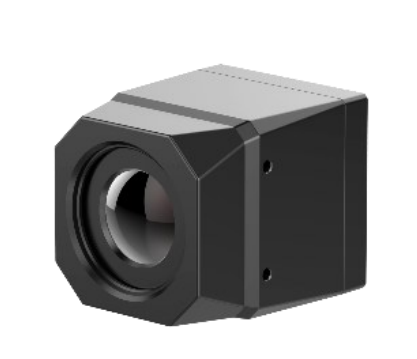

MC212/612

MC Series Uncooled Thermal Module 256×192/640x512 VOx for FPV Drones

The MC212/612 infrared camera consists of a 256×192/640×512 resolution infrared detector, a 10mm optical lens, an image processing motherboard and structural components. It transmits analog video to the internal integration platform via a 6-pin connector, greatly reducing development time. It is specially designed for FPV drones.

Compared with similar low-resolution thermal imaging modules on the market, the MC series provides higher image quality through intelligent image processing algorithms such as non-uniformity correction (NUC), 3D noise reduction (3DNR), 2D noise reduction (DNS), dynamic range compression (DRC) and edge enhancement (EE).

Optimized SWaP solution

• Compact size: only 21 x 22 mm (excluding lens)

• Weight: only 15 g

• Power consumption: 350 mW

Simple development, fast integration

• Support analog CVBS video output with PAL/NTSC formats

• Easy to repair, no need for additional structural changes

Low cost

• In-house developed 256 x 192/12 μm infrared detector

• ASIC chip

Model	MC212
IR Detector Performance
Sensitive material	Vanadium oxide
Permission	256×192
Pixel size	12μm
Spectral response	8μm~14μm
Typical NETD	≤50mK/F1.0/25℃
Image processing
Video interface	CVBS
Startup time	≤5s
Analog video	PAL / NTSC
Image algorithm	NUC/3D/2D/DRC/EE/SFFC
Pseudocolor	11 Types (Support Customization)
ICC Control Software	Video control and display module
Electrical characteristics

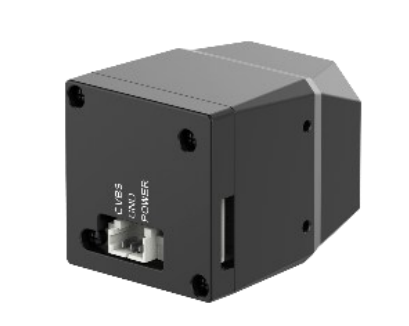

Standard External Interface	6PIN (A1257WV-S-6P)
Supply voltage	DC 3.3V±0.1V
Typical energy consumption	350mW/3.3V @23±3℃
SDK	Windows / Linux/ARM
Physical characteristics
Size (mm)	≤21mm×22mm×25mm (LWH)
Weight	＜16g
Ecological adaptation
Operating temperature	-40℃～+70℃
Storage temperature	-45℃～+85℃
Humidity	5%~95%, non-condensing
Vibration	5.35grms, 3 Axis
Shock	Half-sine wave, 40g/11ms, 3 axes, 6 directions
Certification	ROHS2.0/REACH
Accessories	With a 6PIN cable
