MIN612R Pro
640x512 12μm Thermal Camera Core for Drones

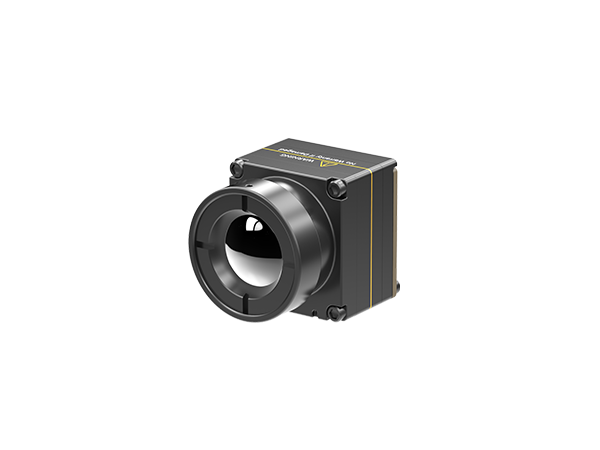

As a leading manufacturer of cooled uncooled infrared detectors & thermal modules, XINGHE Technology developes a tiny size and lightweight infrared thermal imaging core MIN612R Pro, which is the compact version of infrared camera core MIN612R.
Fully oriented for SWaP-C (size-weight-and- power-cost), the size and weight of MIN612R Pro infrared camera core has already been at the forefront in the industry , it is the best choice for customers who have restrict requirements on size and weight when integrating their own drones.
Providing 640×512/12μm self-developed wafer-level infrared detector, lens protection grade IP67, imaging and temperature measurement version, and various SDK solutions, the MIN612R Pro thermal module responds to space constraints with smaller size and lighter weight, achieves longer battery life with lower power consumption, overcomes integration problems in the consumer electronics field, and provides more solutions for compact and portable products.
It is specially developed for the field of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Disaster Relief & Rescue, Forest Fire Prevention, Urban Safety etc.
Compact & Lightweight Design
• Size: 17mm×17mm×22mm (with 9.1mm lens)
• Weight: 13g (with 9.1mm lens）
• Power consumption as low as 0.7W

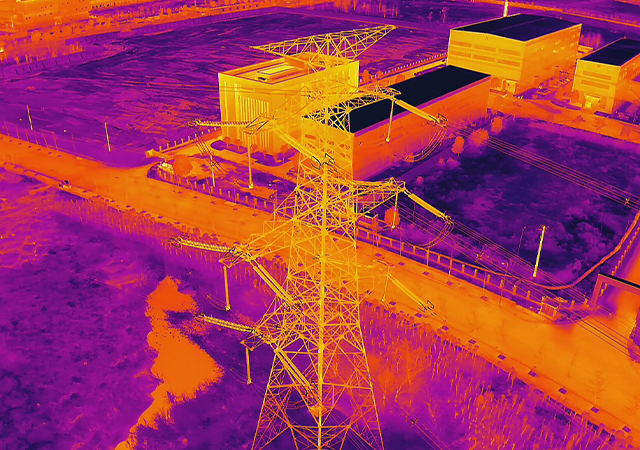

Clear Image & Accurate Radiometry
• Brand new image process algorithm: NUC/3DNR/DNS/DRC/EE
• Support Windows/Linux/ARM SDK
• Support regional, point & isotherm temperature measurement
Various Interfaces for Easy Integration
• DVP/LVDS/USB2.0 interfaces, RAW/YUV image data output, serial port control
Model | iTL612R Pro |
IR Detector Performance | |
Sensitive Material | Vanadium Oxide |
Resolution | 640×512 |
Pixel Size | 12μm |
Spectral Range | 8~14μm |
Typical NETD | ≤40mk |
Image Processing | |
Frame Rate | 30Hz |
Start-up Time | 5s |
Digital Video | RAW/YUV/BT656 |
Image Algorithm | Non-uniformity Correction (NUC) |
Image Display | Black Hot/White Hot/Pseudo Color |
PC Software | |
ICC Software | Module Control & Video Display |
Electrical Specifications | |
Standard External Interface | 30Pin_HRS: DF40C-30DP-0.4V(51), (HRS, Male） |
USB Expansion Board | Type-C |
Communication Interface | RS232-TTL/USB2.0 |
Digital Video Interface | CMOS8/USB2.0 |
Supply Voltage | 4.0-5.0V V VDC |
Typical Power Consumption | 0.7W |
Temperature Measurement | |
Operating Temperature Range | -10°C~+50°C |
Temperature Measurement Range | -20°C~+150°C, 0°C~550°C; Support Customization and Expansion |
Temperature Measurement Accuracy | Greater of ±2°C or ±2% (@23℃±3℃) |
Regional Temperature Measurement | Support Maximum, Minimum and Average Value of the Output Regional Temperature |
SDK | Support Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
Physical Characteristics | |
Size (mm) | 17×17×22 (With 9.1mm Lens) |
Weight | 13g (With 9.1mm Lens) |
Environmental Adaptability | |
Operating Temperature | -40°C~+70°C |
Storage Temperature | -45°C~+85°C |
Humidity | 5%~95%, Non-condensing |
Vibration | 5.35grms, 3 Axis |
Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
Certificates | ROHS2.0/REACH |
Optics | |
Optional Lens | Fixed Focus Athermal: 9.1mm |
