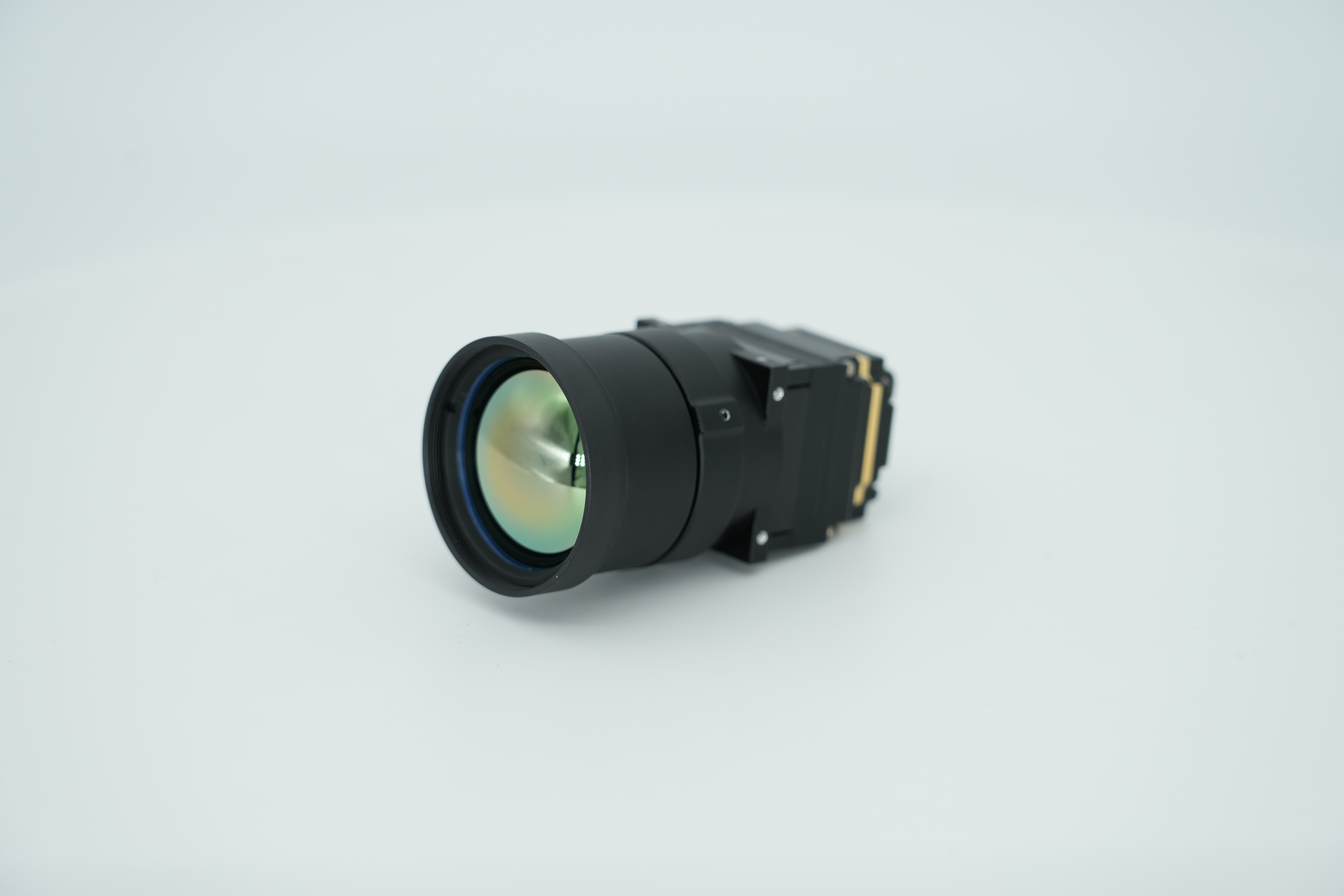

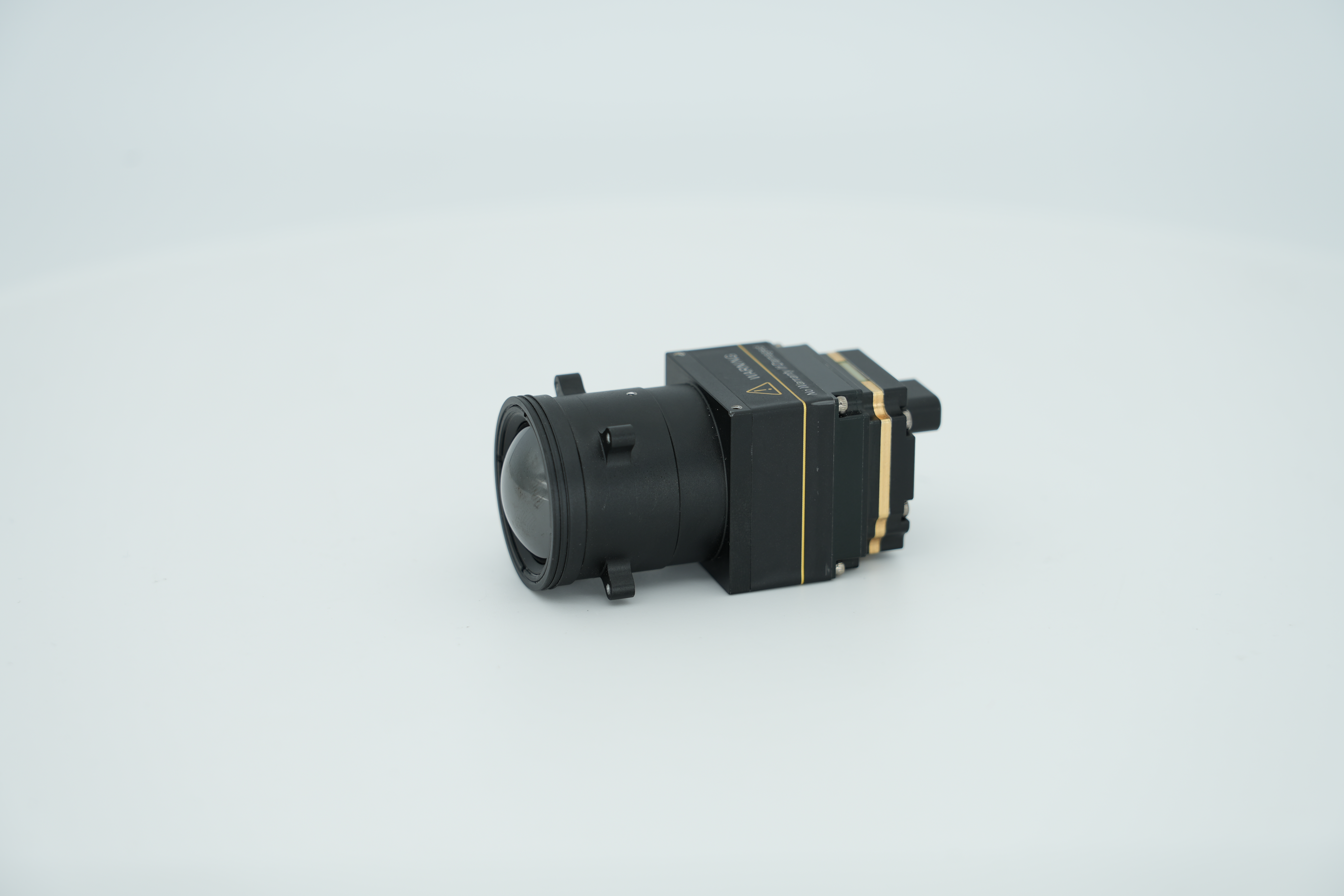

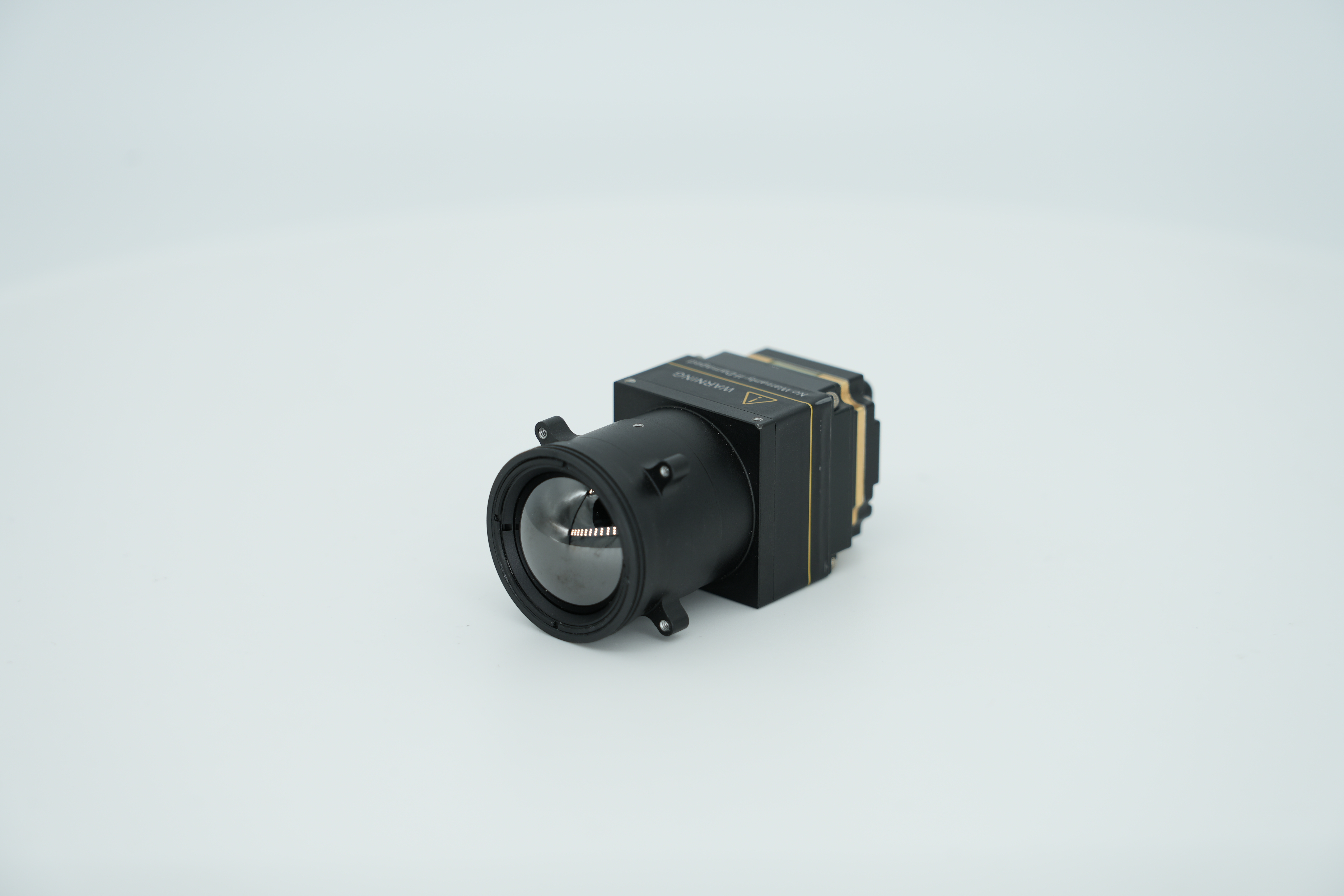

MIN1212/R
1280x1024/12μm Infrared Module for Helmet and Assistive Vision System
As a leading manufacturer of cooled and uncooled infrared detectors and thermal imaging modules, Xinghe Fraredsensor Technology is developing the miniature and lightweight MIN1212/R thermal imaging core.
Fully focused on SWaP-C (size-weight-cost-power), the MIN1212/R infrared camera core's size and weight already lead the industry. It is the best choice for customers with limited size and weight requirements when integrating their own drones.
The MIN1212/R thermal imaging module features a native 1280x1024/12 μm wafer-level infrared detector, an IP67 lens protection rating, an image and temperature measurement version, and various SDK solutions. It offers a more powerful and energy-efficient solution, overcoming integration challenges in consumer electronics and providing more solutions for compact and portable products.
It is specially designed for preventive maintenance, photoelectric inspection, environmental protection, scientific research, aerial photography, police investigation, disaster relief and rescue, forest fire prevention, urban security, etc.
Compact and lightweight design
• Dimensions: 27.8 x 27.8 x 19.6 mm
• Weight: 30 g
Clear images and accurate radiometry
• Completely new image processing algorithm: NUC/3DNR/DNS/DRC/EE.
• Windows/Linux/ARM SDK support
• Support for regional, spot, and isothermal temperature measurements
Various interfaces for easy integration
• USB3.0/HDMI interfaces, RAW/YUV image data output, serial port control
Model | MIN1212/R |
|---|---|
Detector | |
Material | Uncooled vanadium oxide |
Use Resolution | 1280×1024 |
Pixel size | 12µm |
Spectral | 8～14um |
NETD | ≤40mK/F1.0/25℃ |
Image process | |
Resolution | 1280×1024 |
Digital frame rate | 25Hz/30Hz/50Hz |
Digital video interface | DVP16/BT.1120 |
Digital video Format | RAW/YUV/Matrix-TEMP |
Boot time | ≤6s |
Image algorithm | NUC/3DNR/DNS/DRC/EE |
Pseudo color | 10 (white hot/lava/oxide red/hot iron/medical treatment/arctic pole/rainbow 1/rainbow 2/red tint/black hot) |
Electrical interface | |
Standard external interface | 50pin：BP040SB-50-0114-B-R0 |
Communication | UART /USB2.0 |
Expansion component | MIPI(CSI-2lane)/USB3.0 |
Power system | |
Power supply | DC:5V±0.5V |
Power dissipation | ＜1W/5V @25HZ 23±3℃（Without lens and expansion board） |
Environmental adaptability | |
Operation temperature | -40℃～+70℃ |
Storage temperature | -45℃～85℃ |
humidity | 5%～95%，non-condensing |
Vibration resistance | Sine vibration, frequency: 10Hz～150Hz～10Hz, peak amplitude: 0.15mm, axis: X-axis, endurance time: 8 minutes per axis, number of cycles: 2 times. |
Impact resistance | Half sine wave, 30g/11ms, with impact in the X-axis direction 3 times |
Size（Without lens and expansion board） | 27.8×27.8×19.6mm |
Weight（Without lens and expansion board） | ≤30g |
Lens | 14mm/19mm/25mm |
Seal | Front lens IP67 |
