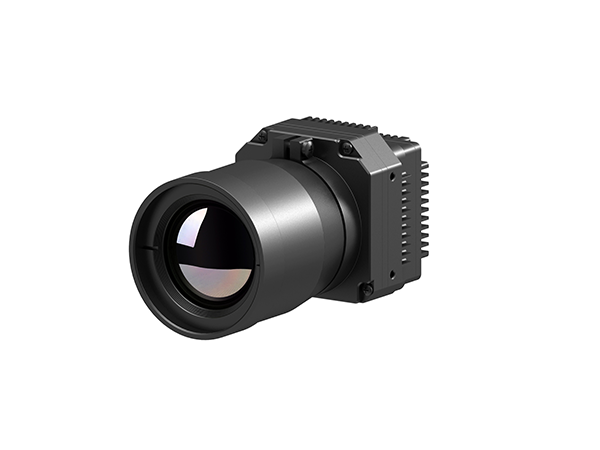

PG1212/PG1212R
The PG series 1280×1024 Uncooled Thermal Module
PG1212/PG1212R is one of the PG series uncooled infrared camera module developed by XINGHE. It is based on metal level package detector with professional signal processing circuit and image processing platform, completely transforms the target infrared radiation into temperature data. Its temperature measurement is available and temperature range can be customizable, which meet the specific requirements of industrial thermography.
With large array 1280x1024 resolution, the PG1212/PG1212R uncooled thermal module could present more image details and supports larger field of view. The reduced 12µm pixel size offer better spatial resolution and match shorter optical lens focus to achieve the same range mission.
It is widely used in areas such as Predictive Maintenance, Metallurgical Petrochemical, Machine Vision, Building Inspection, New Energy, Rail Traffic and other industries.
• Pixel Size: 12μm
• Resolution: 1280x1024
• Spectra Range: 8μm -14μm
• High Sensitivity: Typical NETD<50mK
• Temperature Range: -20℃~150℃, 0℃~550℃
• Temperature Accuracy: Greater of ±3℃ or ±3%
• High reliability & Strong Environmental Adaptability
Model | PG1212R |
IR Detector Performance | |
Resolution | 1280×1024 |
Pixel Size | 12μm |
Spectral Range | 8~14μm |
Typical NETD | <50mK |
Image Processing | |
Frame Rate | 25Hz |
Start-up Time | 25s |
Analog Video | / |
Digital Video | RAW/YUV/BT1120 |
Expansion Component | USB 3.0/Cameralink/HDMI |
Dimming Mode | Linear/Histogram/Mixed |
Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 |
Image Display | Black Hot/White Hot/Pseudo Color |
Image Direction | Horizontally/Vertically/Diagonally Flip |
Image Algorithm | Non-uniformity Correction (NUC) |
Electrical Specification | |
Standard External Interface | 50pin_HRS Interface |
Communication Mode | RS232-TTL, 115200bps |
Supply Voltage | 5V±0.3V |
Typical Power Consumption | 2W/5V (@23±5℃) |
Temperature Measurement (PG1212R) | |
Operating Temperature Range (PG1212R) | -10℃~50℃ |
Temperature Range (PG1212R) | -20℃~150℃，0℃~550℃ |
Temperature Accuracy (PG1212R) | Greater of ±3℃ or ±3% |
SDK (PG1212R) | Support ARM/Windows/Linux SDK, Achieve Full Screen Thermography |
Physical Characteristics | |
Size (mm) | 56×56×44 (Without Lens) |
Weight | 220g±5g (Without Lens) |
Environmental Adaptability | |
Operating Temperature | -40°C~+70°C |
Storage Temperature | -45°C~+85°C |
Humidity | 5%~95%, non-condensing |
Vibration | Random Vibration 5.35grms, 3-axis |
Shock | Half-sine Wave, 40g/11ms, 3-axis 6-direction |
Optics | |
Optional Lens | Fixed Focus Athermal: 14mm/25mm |
