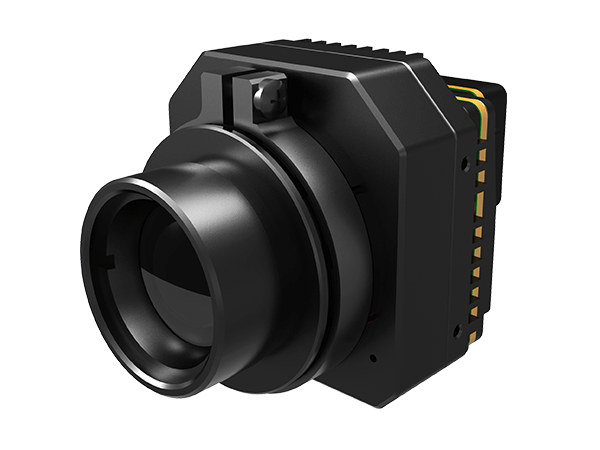

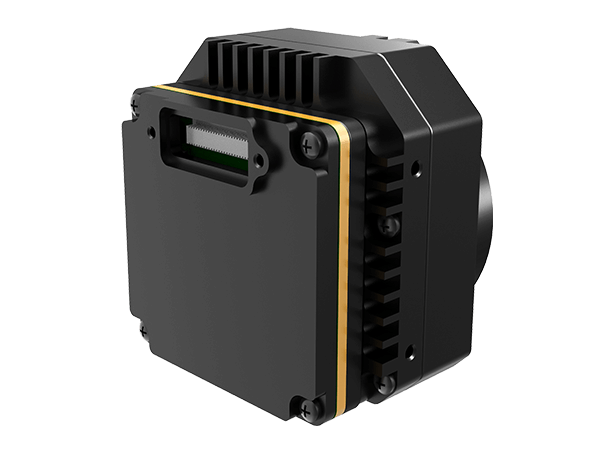

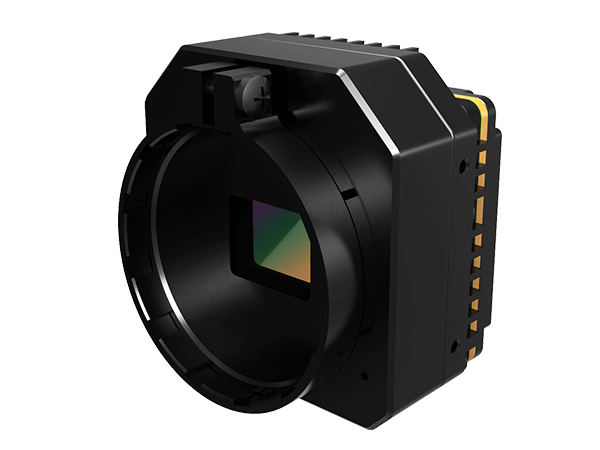

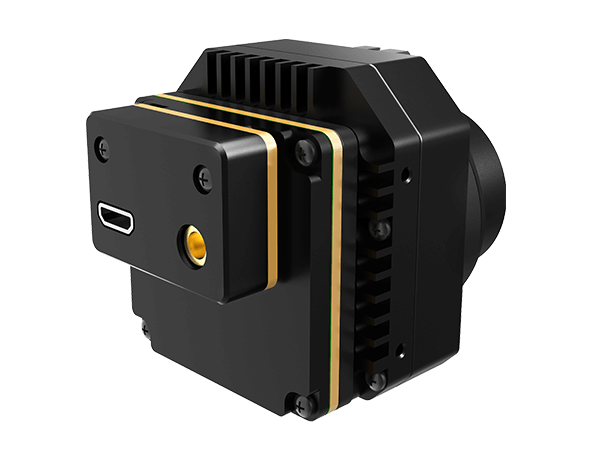

PG417/PG417R
The PG series 384×288 Uncooled Thermal Module
PG417/PG417R is one of the PG series uncooled thermal IR camera modules developed by XINGHE. It consists of 384x288/17μm uncooled infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.
PG417/PG417R is a kind of uncooled infrared thermal imaging module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear thermal image
We are committed to opening a new vision for industrial temperature measurement. After years of technical accumulation and practical experience in the field of infrared temperature measurement, we have provided our customers a full range of machine thermal imaging vision solutions.
Typical NETD<30mk, High Sensitivity
Stable Performance
Easy Integration & Plug-in
Clear Image Quality & Details
Customizable Temperature Range
Strong Environmental Adaptability
Model | PG417/PG417R |
IR Detector Performance | |
Resolution | 384×288 |
Pixel Size | 12μm |
Spectral Range | 8~14μm |
Typical NETD | ＜30mK |
Image Processing | |
Frame Rate | 25Hz/30Hz/50Hz/60Hz |
Start-up Time | 15s |
Analog Video | PAL/NTSC |
Digital Video | RAW/YUV/BT656/LVDS |
Expansion Component | USB/VPC/Cameralink/Gig-E |
Dimming Mode | Linear/Histogram/Mixed |
Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 |
Image Display | Black Hot/White Hot/Pseudo Color |
Image Direction | Horizontally/Vertically/Diagonally Flip |
Image Algorithm | Non-uniformity Correction (NUC) |
Electrical Specification | |
Standard External Interface | 50pin_HRS Interface |
Communication Mode | RS232-TTL, 115200bps |
Supply Voltage | 4.5~6V |
Typical Power Consumption | 2W |
Temperature Measurement (PG417R) | |
Operating Temperature Range (PG417R) | -10℃~50℃ |
Temperature Range (PG417R) | -20℃~150℃，0℃~550℃ |
Temperature Accuracy (PG417R) | Greater of ±2℃ or ±2% |
SDK (PG417R) | Support ARM/Windows/Linux SDK, Achieve Full Screen Thermography |
Physical Characteristics | |
Size (mm) | 44.5×44.5×36.6 |
Weight | 77g±3g |
Environmental Adaptability | |
Operating Temperature | -40°C~+70°C |
Storage Temperature | -45°C~+85°C |
Humidity | 5%~95%, non-condensing |
Vibration | Random Vibration 5.35grms, 3 Axis |
Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
Optics | |
Optional Lens | Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm |
