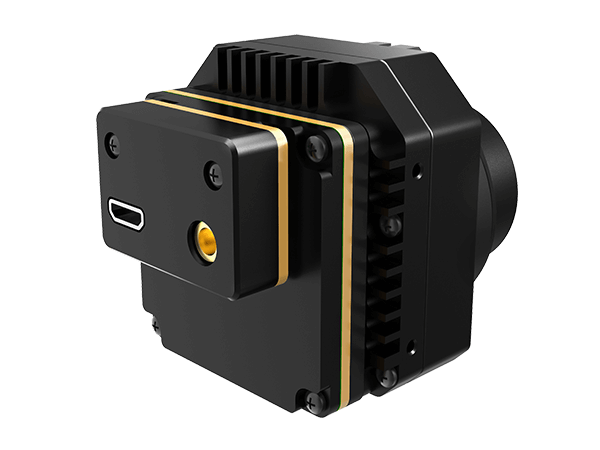

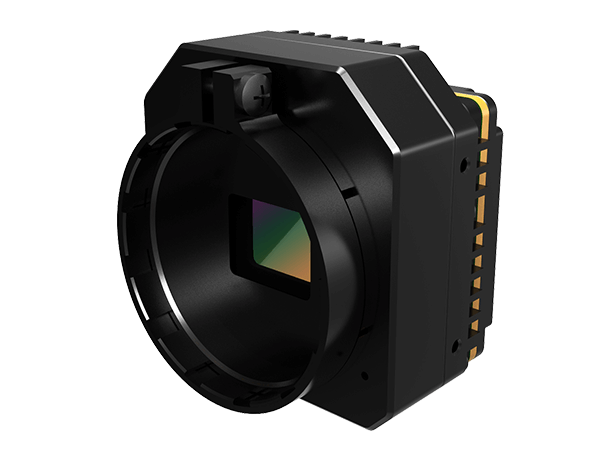

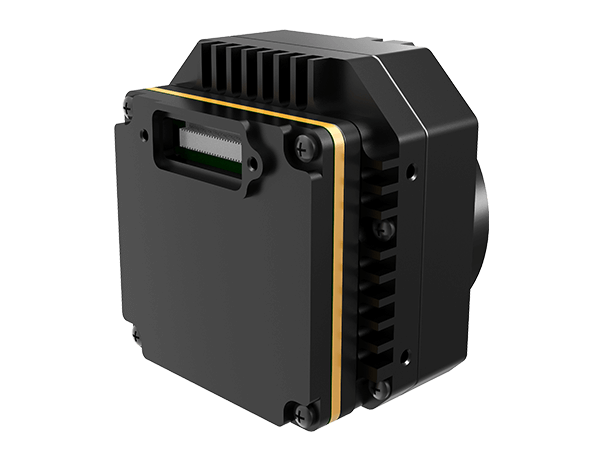

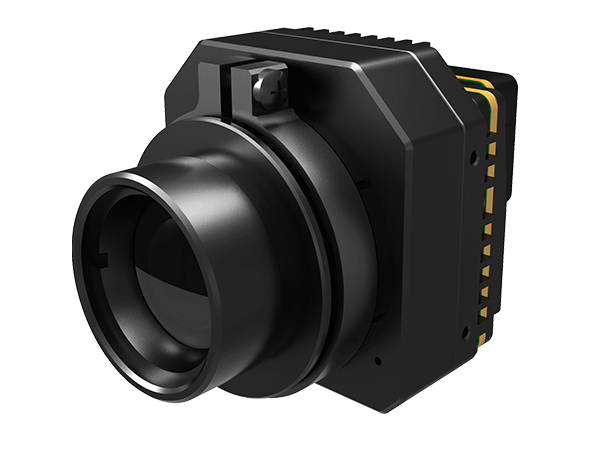

PG612/PG612R
The PG series 640×512 Uncooled Thermal Module
PG612/PG612R is one of the PG series uncooled infrared modules developed by XINGHE. It consists of 640x512@12μm uncooled thermal infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.
PG612/PG612R is a kind of uncooled infrared thermal imaging module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear infrared thermal image.
We are committed to opening a new vision for industrial temperature measurement. After years of technical accumulation and practical experience in the field of infrared temperature measurement, we have provided our customers a full range of machine thermal imaging vision solutions.
- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability
Model | PG612/PG612R |
IR Detector Performance | |
Resolution | 640×512 |
Pixel Pitch | 12μm |
Spectral Range | 8~14μm |
Typical NETD | <40mk |
Image Processing | |
Frame Rate | 25Hz/30Hz |
Start-up Time | <10s |
Analog Video | PAL/NTSC |
Digital Video | Y16/YUV/BT656/LVDS |
Extension Component | USB/Camerlink |
Dimming Mode | Linear/Histogram/Mixed |
Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 |
Image Display | Black Hot/White Hot/Pseudo Color |
Image Direction | Horizontally/Vertically/Diagonally Flip |
Image Algorithm | NUC/AGC/IDE |
Electrical Specification | |
Standard External Interface | 50pin_HRS Interface |
Communication Mode | RS232-TTL, 115200bps |
Supply Voltage | 4~6V |
Temperature Measurement (PG612R) | |
Operating Temperature Range (PG612R) | -10℃~50℃ |
Temperature Range (PG612R) | -20°C~150°C, 100°C~550°C |
Temperature Accuracy (PG612R) | ±2°C or ±2% (Take the Maximum Value) |
SDK (PG612R) | ARM/Windows/Linux SDK, Full Screen Thermography |
Physical Characteristics | |
Dimension (mm) | 44.5×44.5×36.6 |
Weight | ≤85g |
Environmental Adaptation | |
Operation Temperature | -40°C ~ +70°C |
Storage Temperature | -45°C ~ +85°C |
Humidity | 5%~95%, Non-condensing |
Vibration | Random Vibration 5.35grms, 3 Axis |
Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
Optics | |
Optional Lens | Fixed Focus Athermal: 13mm/19mm/24mm |
