CR1212
Uncooled HD 1280×1024/12µm Infrared Camera Core
CR1212 uncooled infrared camera core integrates XINGHE self-developed ceramic package infrared detector, high performance signal processing circuit and brand new image algorithm to output ultra clear images and accurate temperature data. It is suitable for application scenarios with requirements of high quality image and high performance.
Optimized Solution
• Mini size: 33mm×33.4mm×17.6mm (bare module)
• Weight as light as 20g (bare module)
• Power consumption as low as 1W
Outstanding Image Quality & Accurate Temperature Measurement
• Brand new image algorithm for excellent image presentation: NUC/3DNR/DNS/DRC/EE
• Temperature measurement range: -20℃~150℃, 0~550℃ (customizable)
• Temperature measurement accuracy: ±2℃ or ±2%
• Support Android/Windows/Linux/ARM SDK; achieve video stream analysis and conversion from gray to temperature
Strong Universality
• Good stability in various harsh environments
• Various image data output interfaces: CMOS/BT.1120
Model | CR1212/R |
IR Detector Performance | |
Resolution | 1280×1024 |
Pixel Size | 12μm |
Spectral Range | 8~14μm |
Typical NETD | ＜30mK |
Image Processing | |
Frame Rate | 25Hz/30Hz/50Hz |
Start-up Time | 5s |
Analog Video | / |
Digital Video | YUV/BT.1120 |
Image Display | 11 in Total (White Hot/Lava/Iron Red/Light Green/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Tint/Black Hot) |
Image Algorithm | NUC/3DNR/DNS/DRC/EE |
Electrical Specifications | |
Standard External Interface | 50pin_HRS |
Communication Interface | RS232/USB2.0 |
Supply Voltage | 5V±0.5V |
Typical Power Consumption | 1W |
Temperature Measurement | |
Working Temperature Range | -10℃~50℃ |
Temperature Measurement Range | -20℃~150℃, 0℃~550℃ |
Temperature Measurement Accuracy | Greater of ±2℃ or ±2% |
SDK | Android/Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
Physical Characteristics | |
Size (mm) | 33×33.4×17.6mm (Bare Module) |
Weight | 20g (Bare Module) |
Environmental Adaptability | |
Working Temperature | -40℃～+70℃ |
Storage Temperature | -45℃～+85℃ |
Humidity | 5%~95%, non-condensing |
Vibration | 5.35grms, 3-axis |
Shock | Half Sine Wave, 40g/11ms, 3-axis, 6-direction |
Optics | |

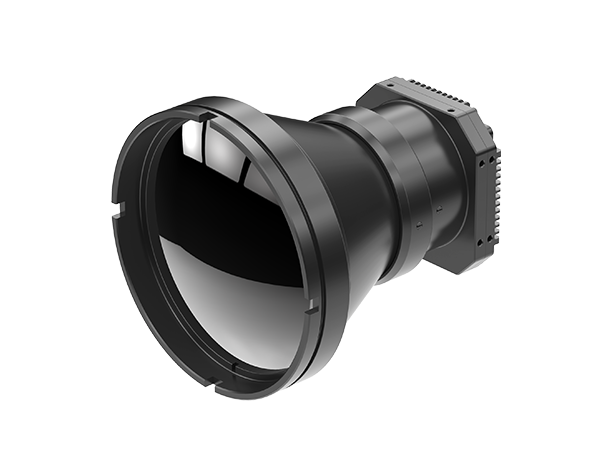

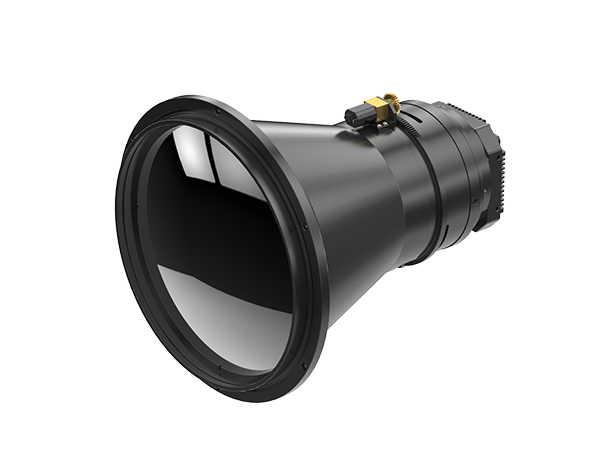

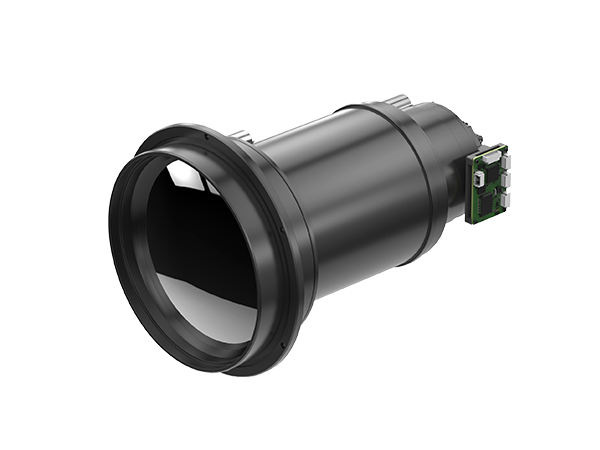

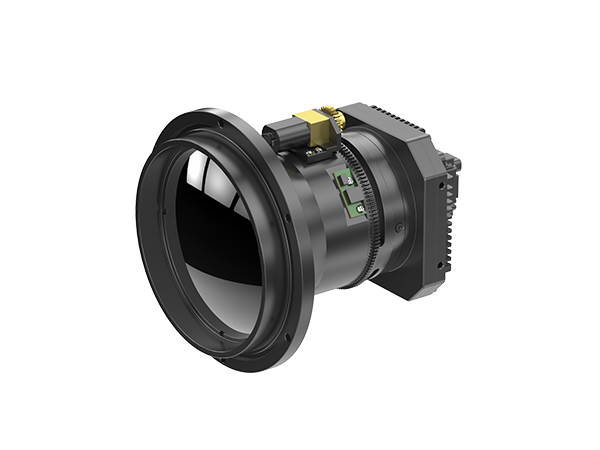

Optical Lens | Fixed Focus Athermal: 14mm/19mm/25mm/35mm/50mm |
