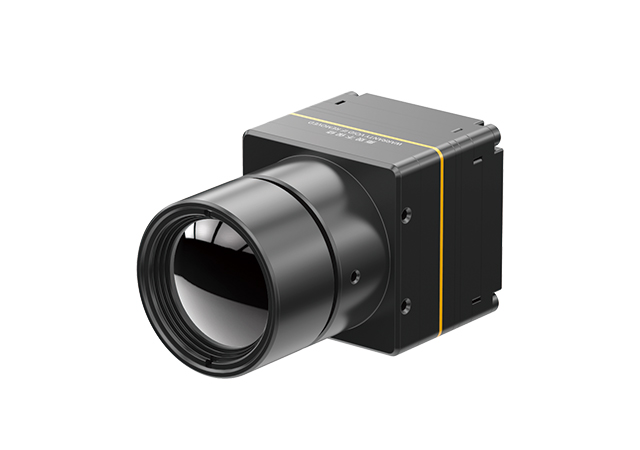

CR412
Ceramic Package 384x288/12µm Thermal Camera Core
CR412/R thermal module is a new arrival infrared product developed by XINGHE. It uses 384×288/12μm ceramic package infrared detector. The thermal module supports 11 pseudo color in total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot). Different industries have different color palette choices.
Ceramic packaging is currently the most popular packaging technology on the market. The size, weight and power consumption of the detector can be significantly reduced.
By integrating the ceramic packaging infrared detector, the CR412/R thermal module presents clear and sharp images.
This new CR412 thermal module will give more choices for customers from various industries such as Industrial Automation, Intelligent Security, Unmanned Platform, Robot, Intelligent Hardware, Advanced Driver Assistant System, Firefighting etc.
Optimal SWaP-C
• Mini size: 25.4mm×25.4mm×22.0mm (without lens)
• Light weight: as low as 20g (without lens)
• Power consumption as low as 0.8W
Outstanding Performance
• Powerful image process algorithm: NUC/3DNR/DNS/DRC/EE
• Temperature measurement range: -20℃~150℃, 0~550℃ (customizable)
• Temperature measurement accuracy: ±2℃ or ±2%
Strong Universality
• Good stability in various harsh environments
• Image data output: USB2.0/DVP/LVDS
• Support Windows/Linux SDK; achieve video stream analysis and conversion from gray to temperature
Model | CR412/R |
IR Detector Performance | |
Resolution | 384×288 |
Pixel Size | 12μm |
Spectral Range | 8~14μm |
Typical NETD | ＜30mK |
Image Processing | |
Frame Rate | 25Hz/30Hz/50Hz |
Start-up Time | 5s |
Analog Video | PAL/NTSC |
Digital Video | YUV/BT.656/LVDS/USB2.0 |
Image Display | 11 in Total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot) |
Image Algorithm | NUC/3DNR/DNS/DRC/EE |
Electrical Specifications | |
Standard External Interface | 50pin_HRS |
Communication Interface | RS232/USB2.0 |
Supply Voltage | 4~5.5V |
Typical Power Consumption | 0.8W |
Temperature Measurement | |
Operating Temperature Range | -10℃~50℃ |
Temperature Measurement Range | -20℃~150℃, 0℃~550℃ |
Temperature Measurement Accuracy | Greater of ±2℃ or ±2% |
SDK | Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
Physical Characteristics | |
Size (mm) | 25.4×25.4×22.0mm (Without Lens) |
Weight | 20g (Without Lens) |
Environmental Adaptability | |
Operating Temperature | -40℃～+70℃ |
Storage Temperature | -45℃～+85℃ |
Humidity | 5%~95%, non-condensing |
Vibration | 5.35grms, 3 Axis |
Shock | Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction |
Optics | |

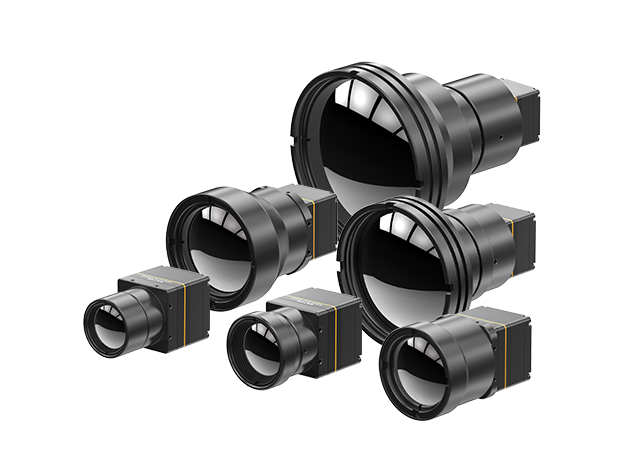

Optional Lens | Fixed Athermal: 13mm/19mm/25mm/35mm/50mm/70mm (TWIN412) |
