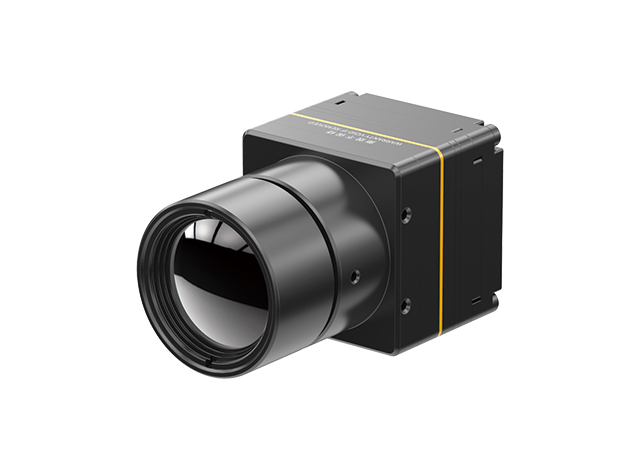

CR612
Ceramic Package 640x512/12µm Thermal Camera Core

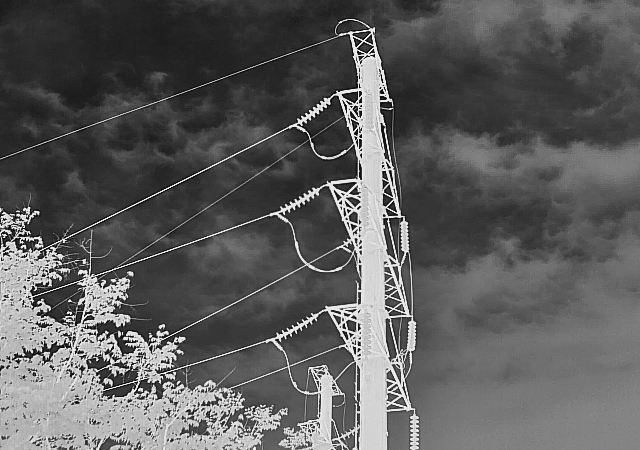

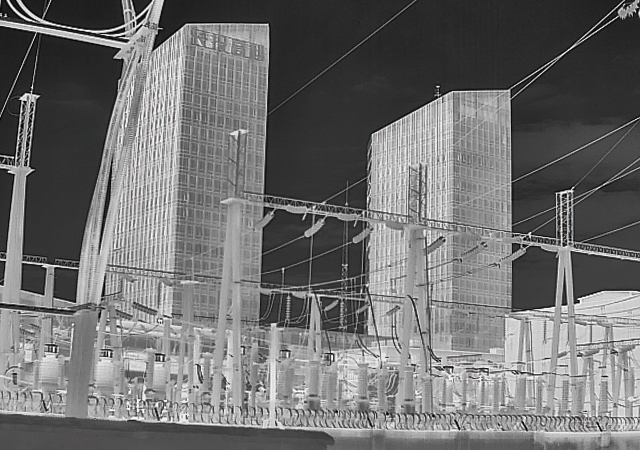

CR612 thermal module is a new arrival product developed by XINGHE. It integrates 640×512/12µm ceramic package uncooled infrared detector. With typical NETD＜30mk, the CR612 thermal module could present clearer, sharper and more detailed image.
With temperature measurement range of -20℃~150℃/0~550℃, accuracy of ±2℃ or ±2% and frame rate up to 30Hz, the thermal module guarantees smooth thermal image and accurate temperature measurement.
The CR612 thermal module has the advantages of compact design, light weight structure and power consumption as low as 0.8w. With enhanced image algorithms and temperature measurement function, the CR612 thermal module presents more stable images and accurate temperature.
Ceramic packaging process is similar to metal packaging, which is a mature infrared detector packaging technology. Compared with metal packaging, the volume and weight of the packaged detector will be greatly reduced. Thus, the CR612 thermal module could be applied to industries that have strict requirements on size, weight and power consumption.
Optimal SWaP-C
• Mini size: 25.4mm×25.4mm×22.0mm (without lens)
• Light weight: as low as 20g (without lens)
• Power consumption as low as 0.8W
Outstanding Performance
• Powerful image process algorithm: NUC/3DNR/DNS/DRC/EE
• Temperature measurement range: -20℃~150℃, 0~550℃ (customizable)
• Temperature measurement accuracy: ±2℃ or ±2%
Strong Universality
• Good stability in various harsh environments
• Image data output: USB2.0/DVP/LVDS
• Support Windows/Linux SDK; achieve video stream analysis and conversion from gray to temperature
Model | CR612/R |
IR Detector Performance | |
Resolution | 640×512 |
Pixel Size | 12μm |
Spectral Range | 8~14μm |
Typical NETD | ＜30mK |
Image Processing | |
Frame Rate | 25Hz/30Hz |
Start-up Time | 5s |
Analog Video | PAL/NTSC |
Digital Video | YUV/BT.656/LVDS/USB2.0 |
Image Display | 11 in Total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot) |
Image Algorithm | NUC/3DNR/DNS/DRC/EE |
Electrical Specifications | |
Standard External Interface | 50pin_HRS |
Communication Interface | RS232/USB2.0 |
Supply Voltage | 4~5.5V |
Typical Power Consumption | 0.8W |
Temperature Measurement | |
Operating Temperature Range | -10℃~50℃ |
Temperature Measurement Range | -20℃~150℃, 0℃~550℃ |
Temperature Measurement Accuracy | Greater of ±2℃ or ±2% |
SDK | Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
Physical Characteristics | |
Size (mm) | 25.4×25.4×22.0mm (Without Lens) |
Weight | 20g (Without Lens) |
Environmental Adaptability | |
Operating Temperature | -40℃～+70℃ |
Storage Temperature | -45℃～+85℃ |
Humidity | 5%~95%, non-condensing |
Vibration | 5.35grms, 3 Axis |
Shock | Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction |
Optics | |

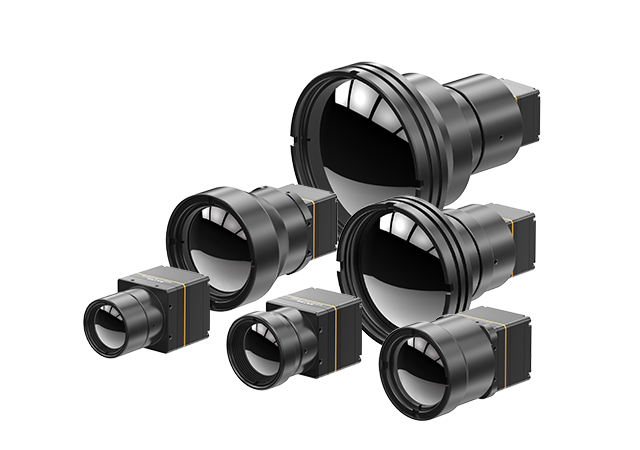

Optional Lens | Fixed Athermal: 13mm/19mm/25mm/35mm/50mm/70mm (CR612) |
