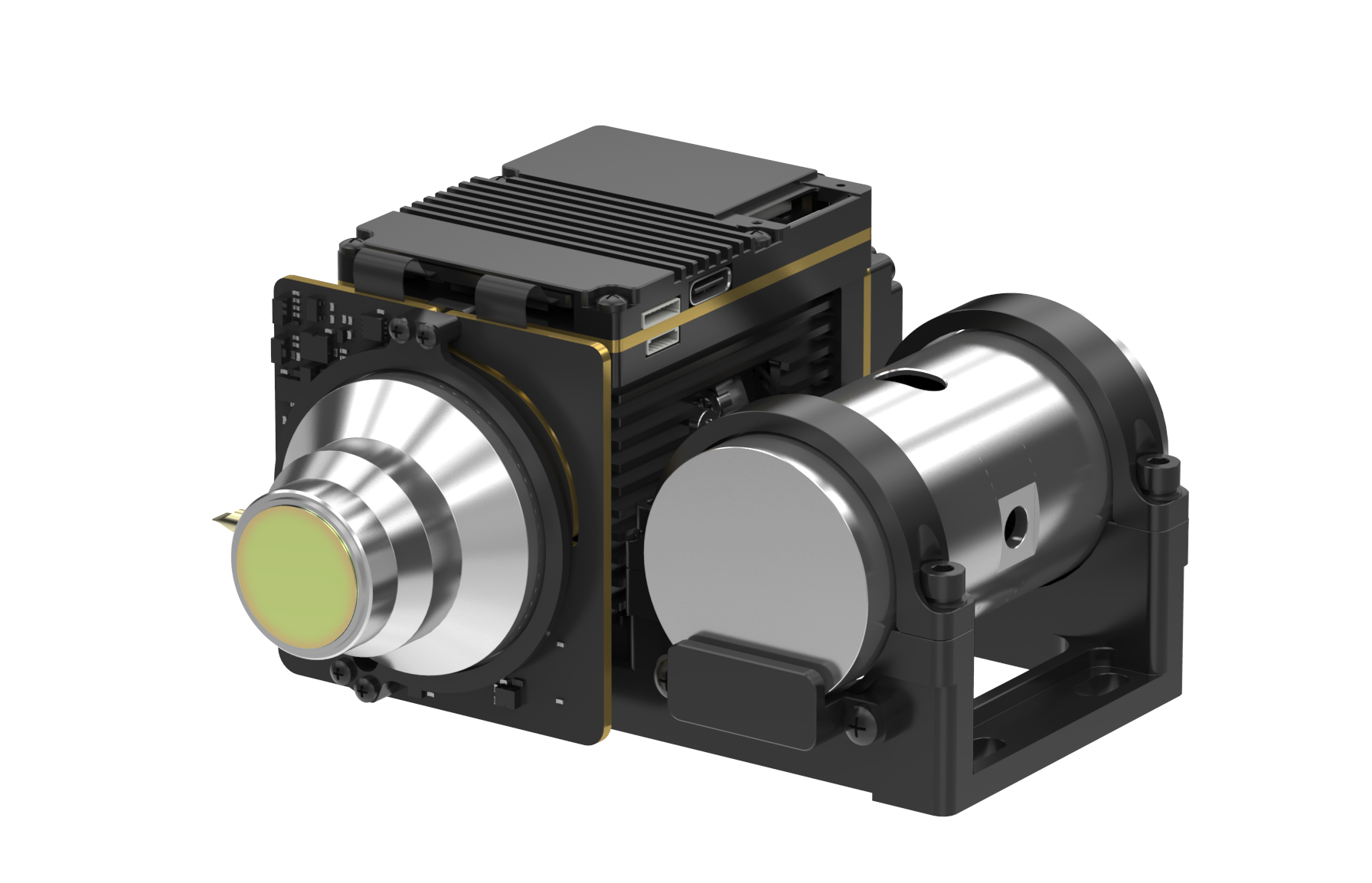

XH1210HMF

1280×1024/10μm MWIR HOT Cooled T2SL Module

The XH1210HMF module uses a high-temperature, cooled 1280×1024/10μm mid-wavelength infrared detector combined with a next-generation image processing algorithm to output fine, high-definition 1280×1024 infrared images. The image size is reduced to 10μm, achieving higher spatial resolution, and shorter focal length optical lenses can achieve the same detection distance. HOT technology has significantly optimized the SWaP, reducing the size to 101×101×54 mm³, reducing the weight to 570g, and reducing the cooling time to 6 minutes. This simple design, supporting various digital video interfaces, is widely used in miniature remote sensing scenarios.

• 1280×1024 large-area array, wide field of view
• 10μm pixel size, high spatial resolution, long-range detection
• size reduced to 101×101×54mm³, weight reduced to 570g
• cooling time reduced to 6min, quick start-up
• Cameralink / USB3.0 / GiGE / HDMI / SDI / MIPI / Fiber optic image interface；
• RAW/YUV image data output

Model	XH1210HMF
Detector material	T2SL
Resolution	1280×1024
Pixel size	10 μm
Spectral range	3.7μm±0.2μm~4.8μm±0.2μm
Typical NETD	≤20mK
Frame rate	50Hz
Image processing algorithm	DRC, 2D/3D noise reduction, EE gain
Analog video	PAL/NTSC
Digital video	DVP
Communication	USB2.0/LV-TTL
Cooling time (23℃)	≤6 min
Continuous power consumption (23℃)	≤9W
Operating temperature	-40~+71℃
Size (mm)	≤101×101×54
Weight	≤570g
Optics	Fixed focus: 25mm/F2
Extension component	Digital Video: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode optical fiber/ Multi-mode optical fiber
Extension component	Communication: RS422/CAN/USB3.0/GigE
