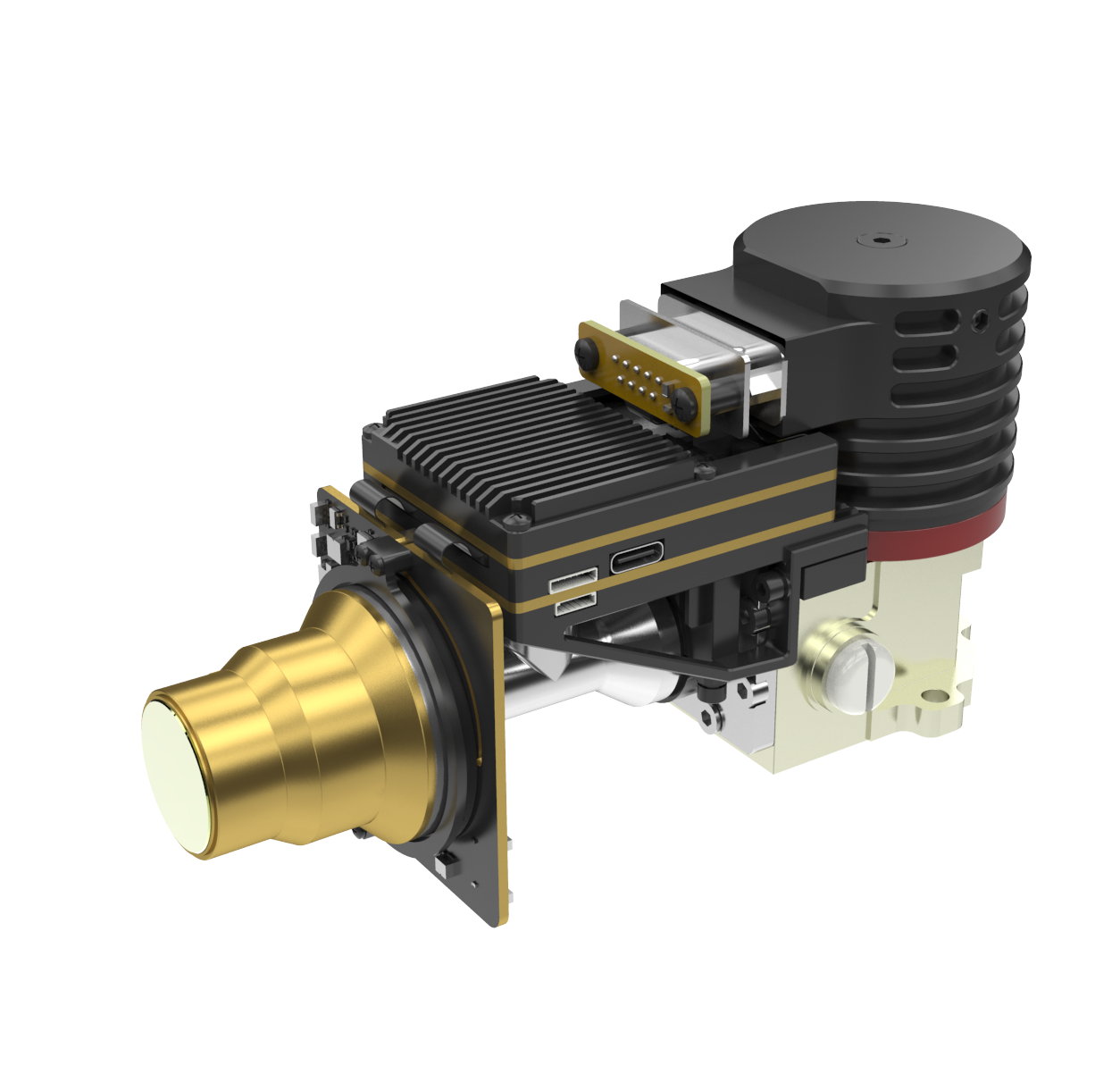

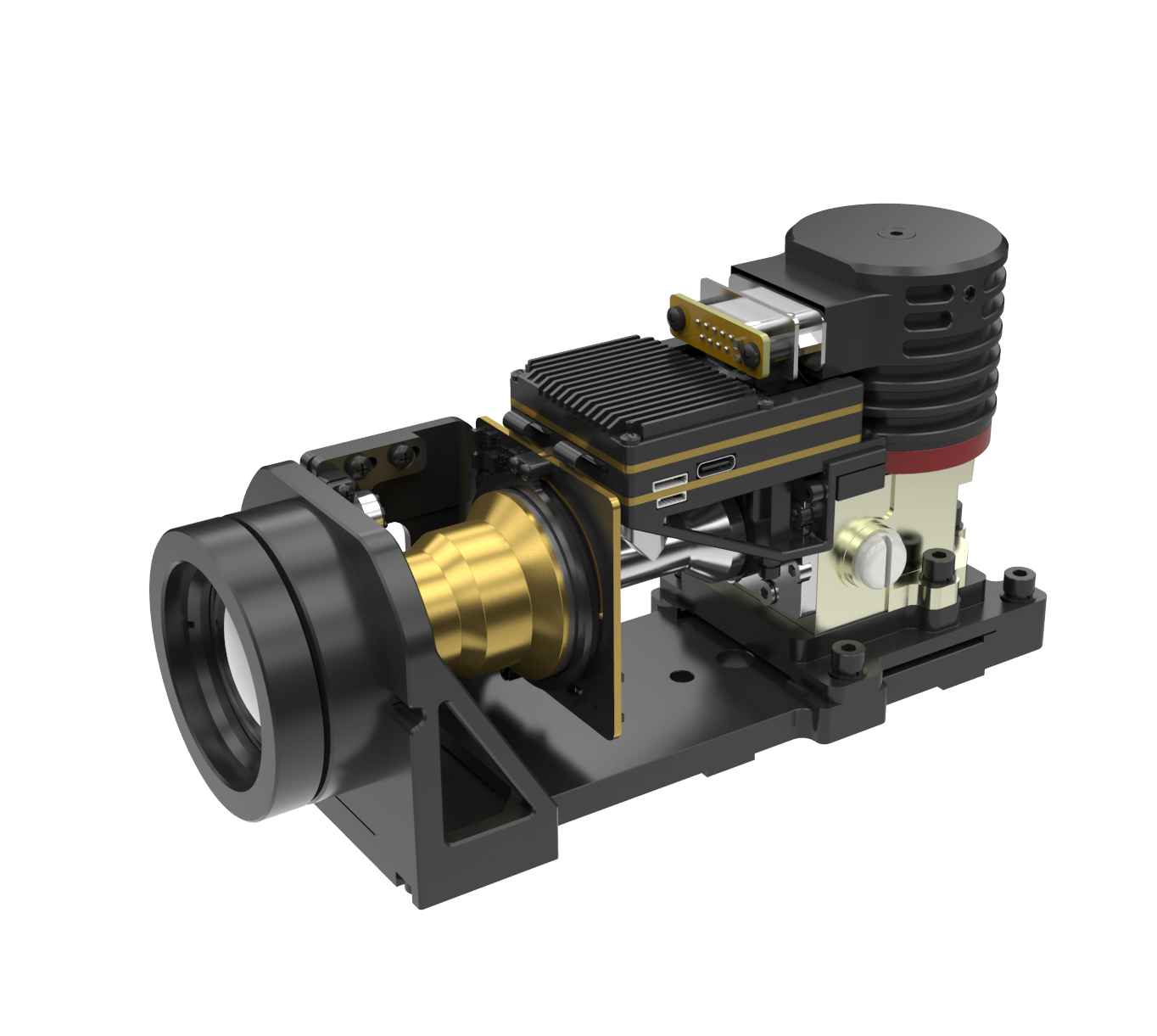

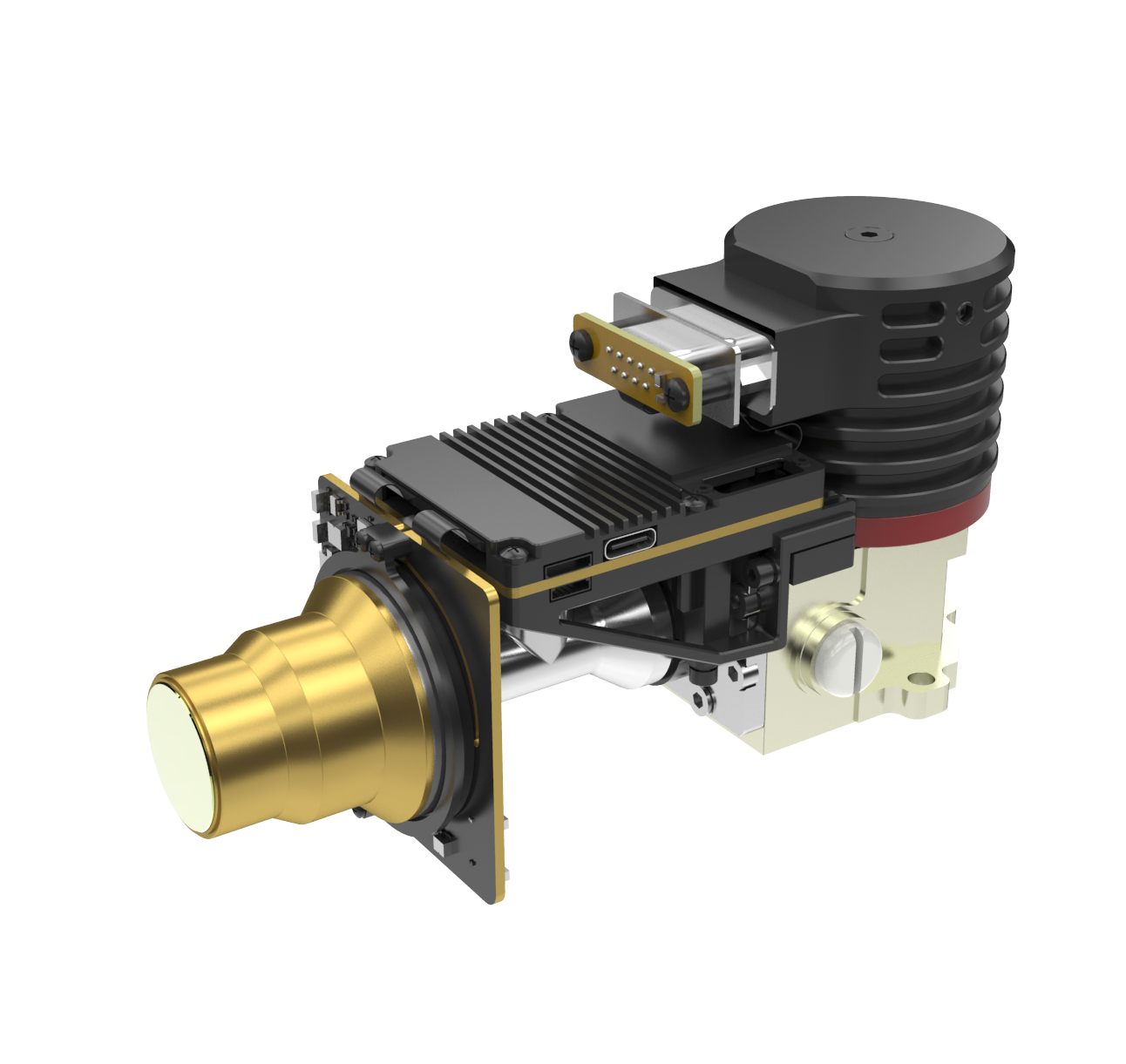

XH1210LC
1280×1024/10μm T2SL Cooled LWIR High Definition Module
The XH1210LC long-wavelength cooled infrared module, based on a 1280×1024/10 μm long-wavelength cooled infrared detector, is integrated with various image processing algorithms, making it particularly suitable for detecting dust or reflective interference in challenging environments. The high frame rate allows for the acquisition of fast-moving targets. The mechanism is compatible with multiple interfaces and easily integrates into existing systems.
• High ability to penetrate sand and dust, adapt to complex working environments.
• Capable of detecting low-temperature objects
• Undisturbed by the reflection of the sun and sea
• Cameralink / USB3.0 / GiGE / HDMI / SDI / MIPI / Fiber optic image interface；
• RAW/YUV image data output
Model | XH1210LC |
Detector material | T2SL |
Resolution | 1280×1024 |
Pixel size | 10 μm |
Spectral range | 7.7±0.2μm~9.4±0.3μm |
Typical NETD | ≤35mK |
Frame rate | 50Hz |
Image processing algorithm | DRC, 2D/3D noise reduction, EE gain |
Analog video | PAL/NTSC |
Digital video | DVP/LVDS/USB2.0 |
Communication | USB2.0/LV-TTL |
Cooling time (23℃) | ≤15W |
Operating temperature | -40~+71℃ |
Size (mm) | ≤148mm×59mm×82mm |
Weight | ≤730g |
Optics | 45mm/F2 |
Extension component | Digital Video: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode optical fiber/ |
Communication: RS422/CAN/USB3.0/GigE |
