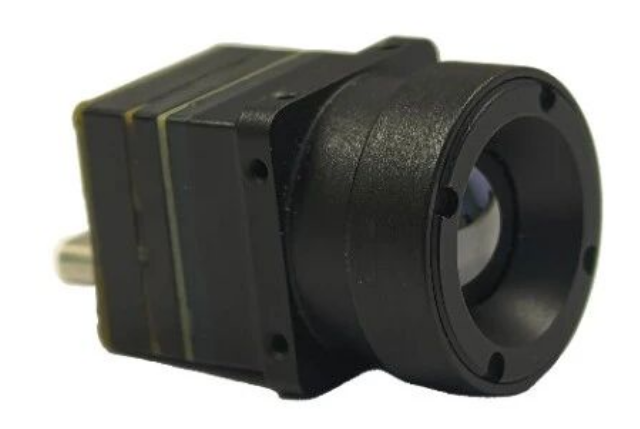

XH160
Detector Type | Vanadium oxide uncooled focal plane detector |
|---|---|
Effective Pixels | 640 (H) × 512 (V) |
Pixel Pitch | 12 μm |
NETD | ≤40mK@25 °C，F/1.0 |
|---|---|
Frame Rate (fps) | 50 |
Spectral Range | 8 μm–14 μm |
Focal Length (EFL) | 9.1 mm/13 mm |
|---|---|
Aperture (F.NO) | F1.0 |
Field of view(FOV) | 47.7° × 38.2° x 61.5°/32.3° × 26.1° x 40.6° |
Power Supply | USB ,MIPI: 4.5–5.5 VDC (5.5 VDC is recomended) CVBS: 4.5–20 VDC |
|---|---|
Typical Power Consumption | ＜0.5W |
Dimension Operating Temperature | MIPI: 17.3 mm × 17.3 mm × 13.05 mm (0.68" × 0.68" × 0.51") (L × W × H) (Lens and lens mount excluded) USB: 17.3 mm × 17.3 mm × 16.8 mm (0.68" × 0.68" × 0.66") (L × W × H) (Lens and lens mount excluded) CVBS: 17.3 mm × 17.3 mm × 20.8 mm (0.68" × 0.68" × 0.82") (L × W × H) (Lens and lens mount excluded)-40℃~70℃ |
Net Weight | MIPI: 5.6 ± 0.1 g (0.01 lb) (Lens and lens mount excluded) USB: 7.2 ± 0.1 g (0.02 lb) (Lens and lens mount excluded) CVBS: 7.6 ± 0.1 g (0.02 lb) (Lens and lens mount excluded) |
|---|
