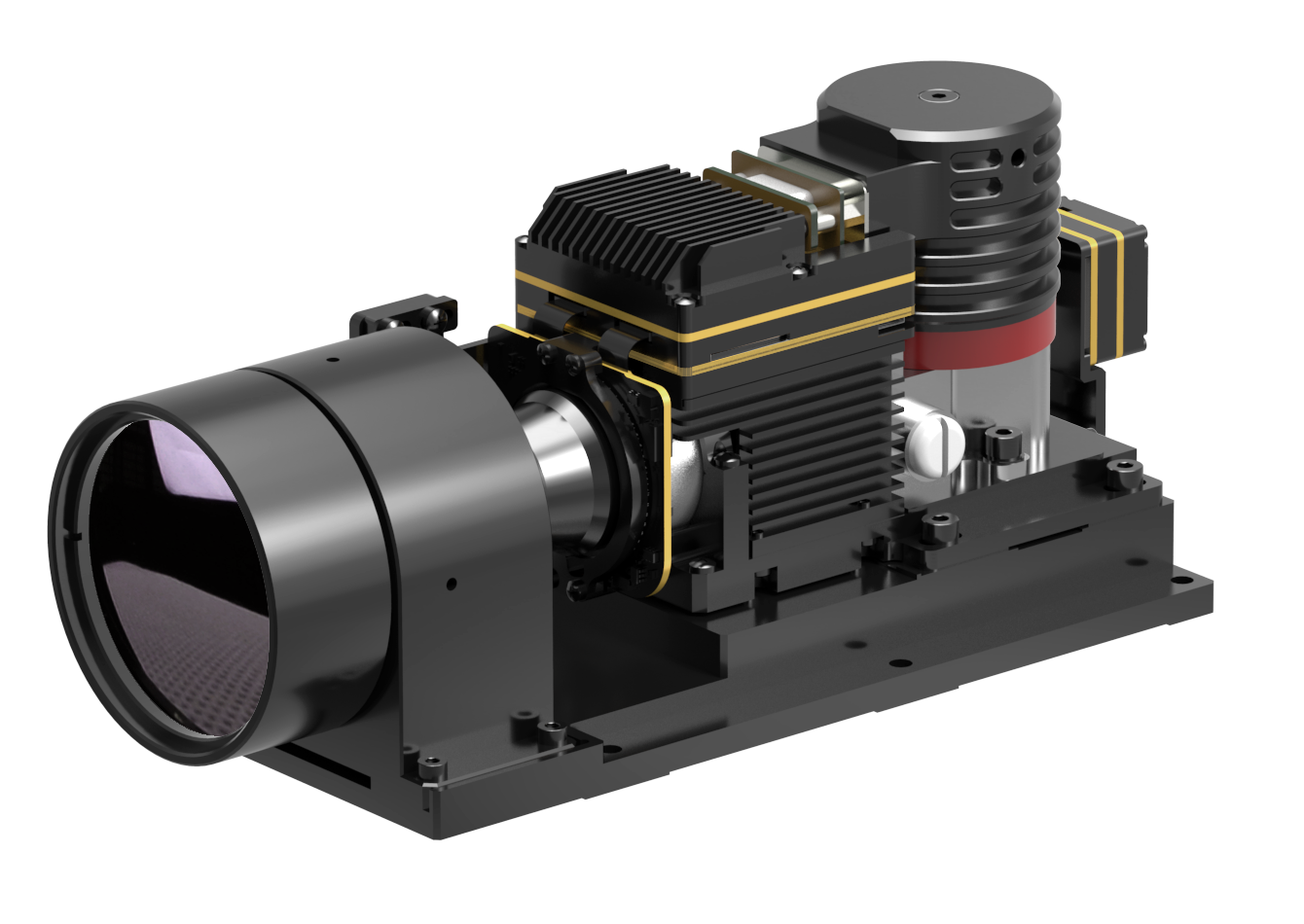

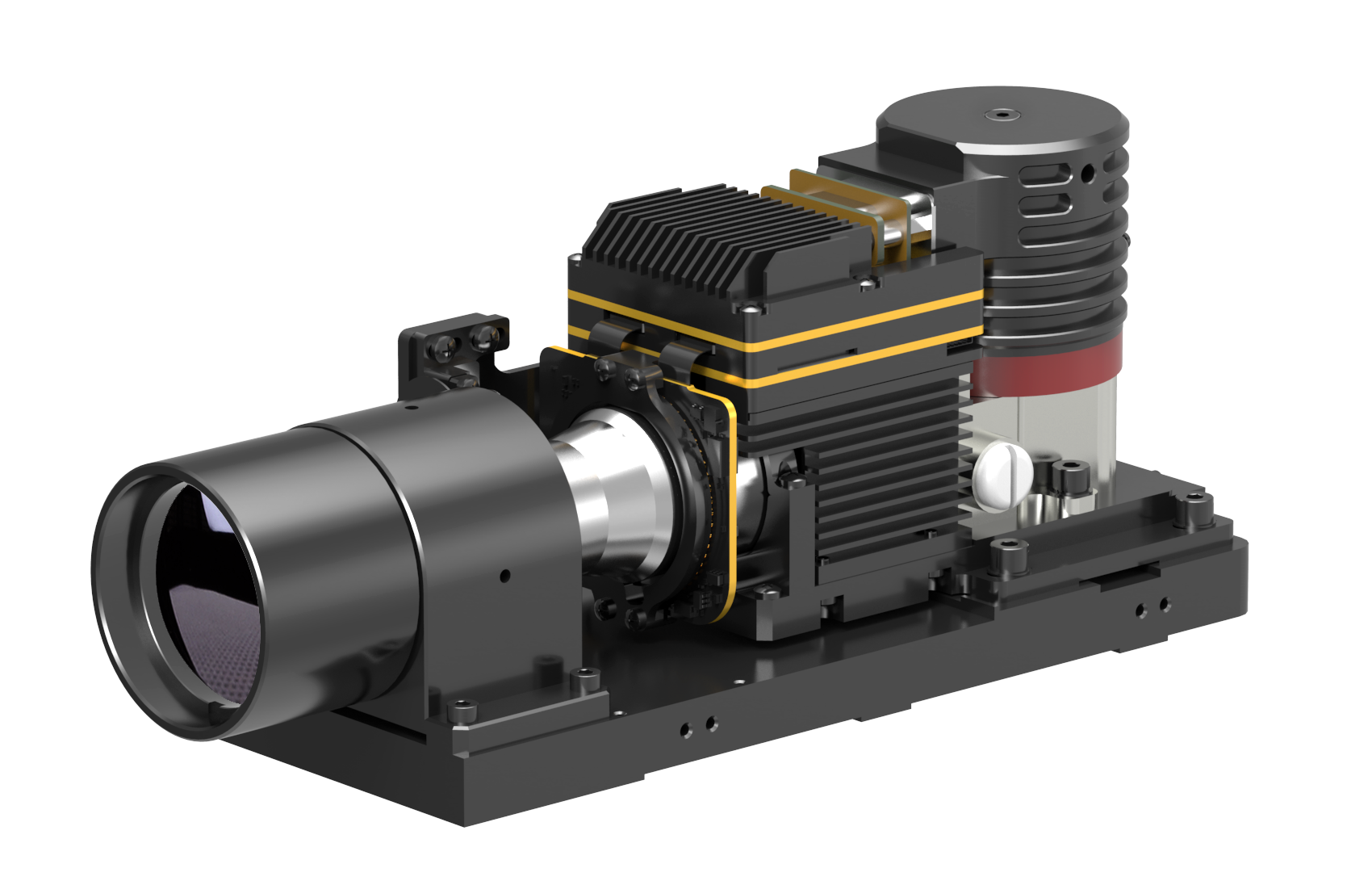

XH330
320x256/30μm Cooled MCT Thermal Module For Optical Gas Imaging
With high performance signal processing circuit and advanced image processing algorithm, XH330 for gas leak
detection is developed on the basis of HgCdTe mid-wave cooled infrared detector. By using thermal imaging technology,
XH330 visualize VOCs gas (volatile organic compounds) that can't be seen by naked eyes. It is effective to detect
VOCs leakage in the production and transportation process of petrochemical enterprises, and has great application value
in safety production, environmental protection supervision, cost saving.
High Sensitivity
High sensitive cooled infrared detector, NETD≤15mK
Quite efficient in application of low gas concentration and slow gas flow
Effective leak detection includes Alkanes, Alkenes, Alcohols, Benzenes, Ketones and other gases
Easy Integration
Long range non-contact temperature measurement: range of -20℃~400℃
Support point and regional analysis, high temperature alarm, hot spot tracking and other temperature algorithms
Cameralink/DVP/USB/Gig-E image output interfaces, compatible with a variety of development environments
Multiple lens configurations, more optional fields of view, more scenes available
Explosion-proof (XH330G2)
Obtain the explosion-proof certificate (Ex ic IIC T4 Gc)
Model | XH330 |
|---|---|
Performance | |
Type | MWIR Cooled Thermal Module |
Resolution | 320×256 |
Pixel Size | 30µm |
Cryocooler | Stirling Cooler CL058 |
Spectral Range | 3.2µm±0.1µm~3.5µm±0.1µm |
Cooling Time (20℃) | ≤8min@25±3℃ |
Typical NETD | ≤15mK@25±3℃ |
Frame Rate | 30Hz |
Gas Detection Type | Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc |
Image Processing | |
Imaging Control | Image Direction: Horizontally/Vertically/Diagonally Flip Digital Zoom: 1~10X Continual Zoom Pseudo Color: ≥8 Types Non-uniformity Correction Gas-enhanced Image Algorithm Image Noise Reduction Image Detail Enhancement Dynamic Range Compression |
Electrical Specifications | |
Electrical Port | Serial LVDS Port (Standard CameraLink Protocol) Serial Communication Port (RS422) External Sync Port (RS422) Server Port (RS422) Power Supply |
Analog Video | PAL |
Digital Video | 16 bit CameraLink (Cameralink Base Mode) 16bit DVP Output/USB (Optional)/Gig-E (Optional) |
Control | RS422, Baud Rate 115200 |
Power Supply | 24V DC / 12V DC(G2) |
Stable Power Consumption | 12W |
Temperature Measurement(G2) | |
Temperature Measurement Range | --20℃~400℃ |
Temperature Measurement Accuracy | ±1℃ (0~100℃), ±2% (>100℃) |
Physical Characteristics | |
Size (mm) | 155×67×80 (Without Lens & Accessories) |
Weight | ≤900g (Without Lens & Accessories) |
Operating Temperature | -40°C ~ +60°C |
Explosion-proof Certification(G2) | Ex ic IIC T4 Gc |
Optional Lens | Fixed Zoom: 23mm/F1.5 (FOV 23.58°×18.96°) 55mm/F1.5 (FOV 9.97°×7.99°) |
