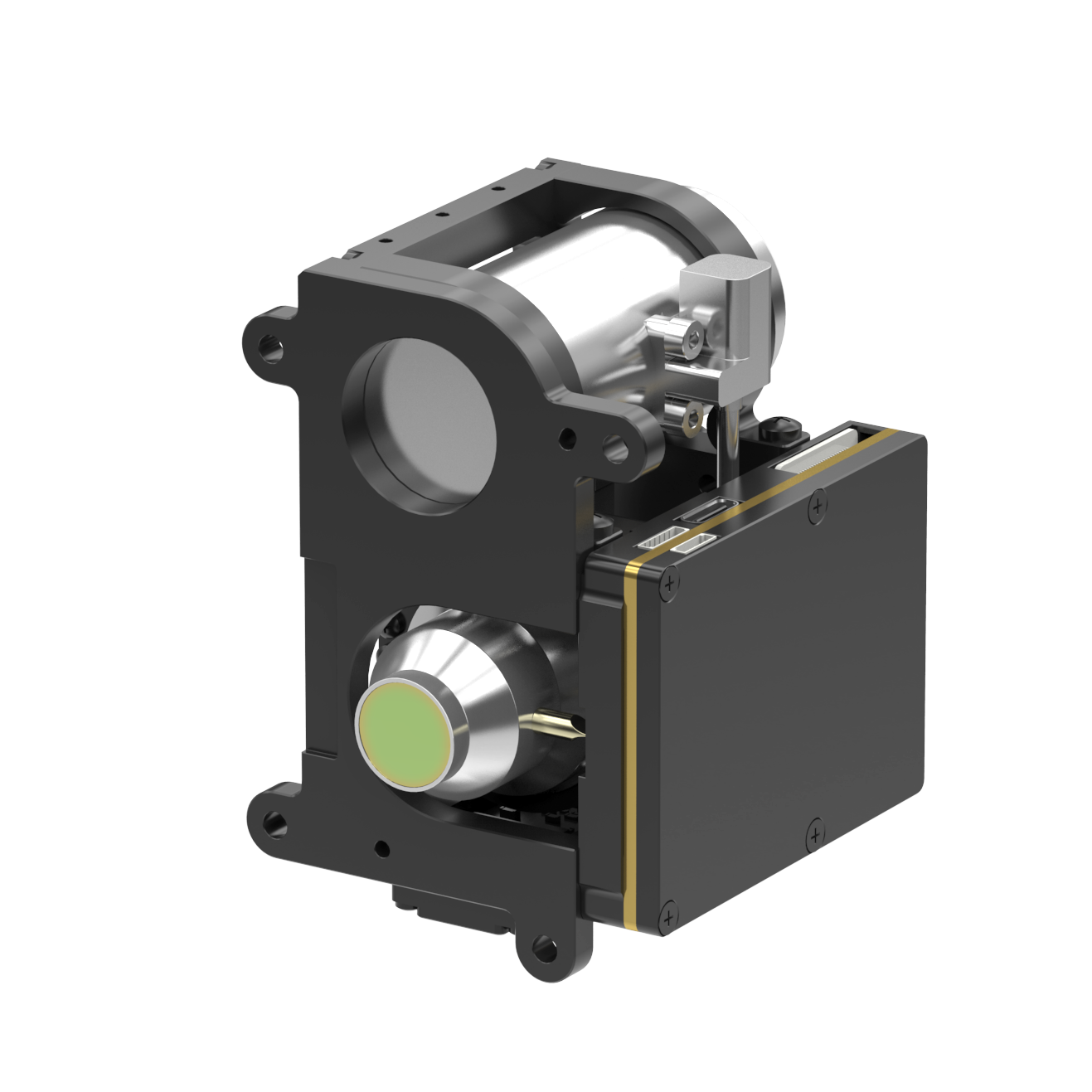

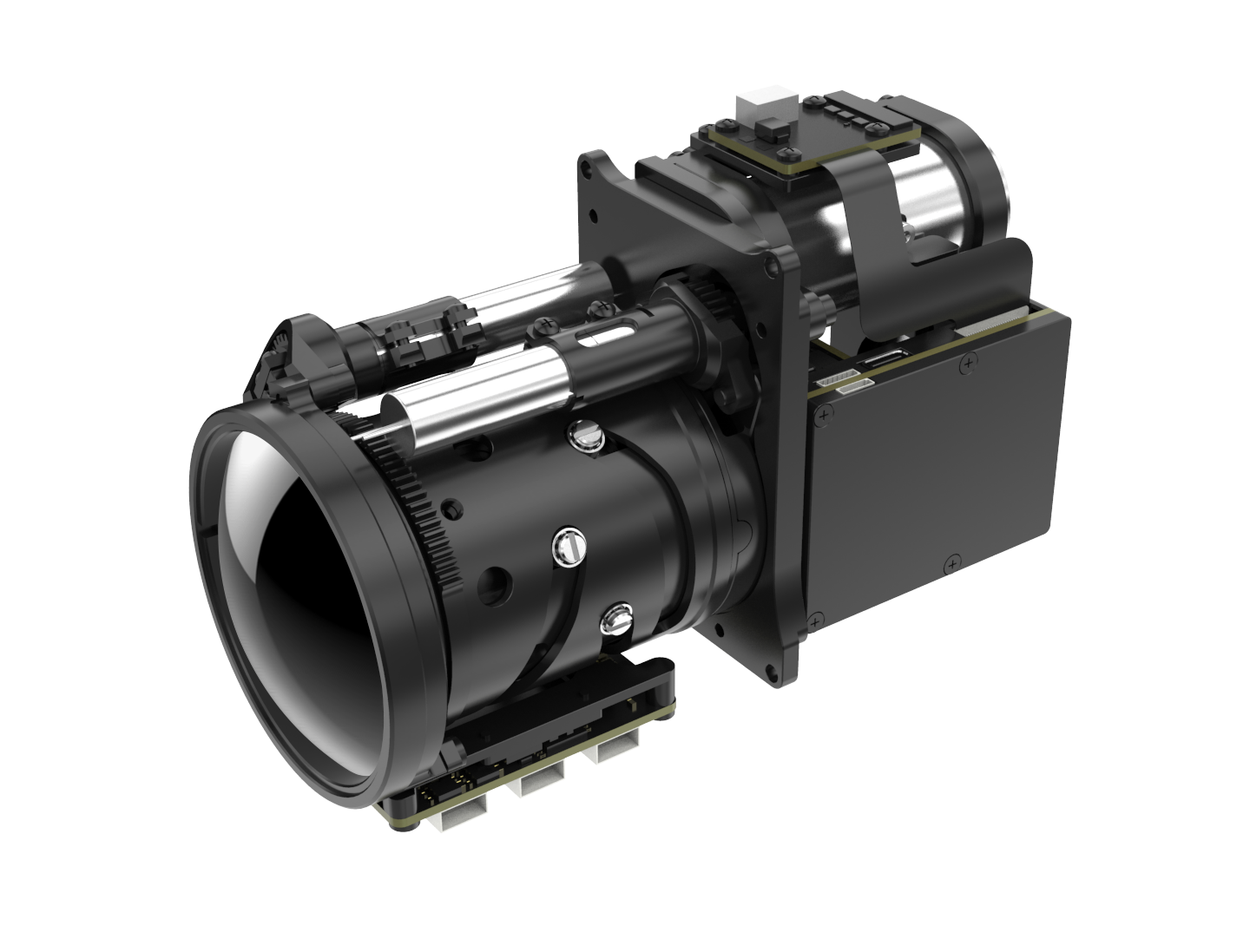

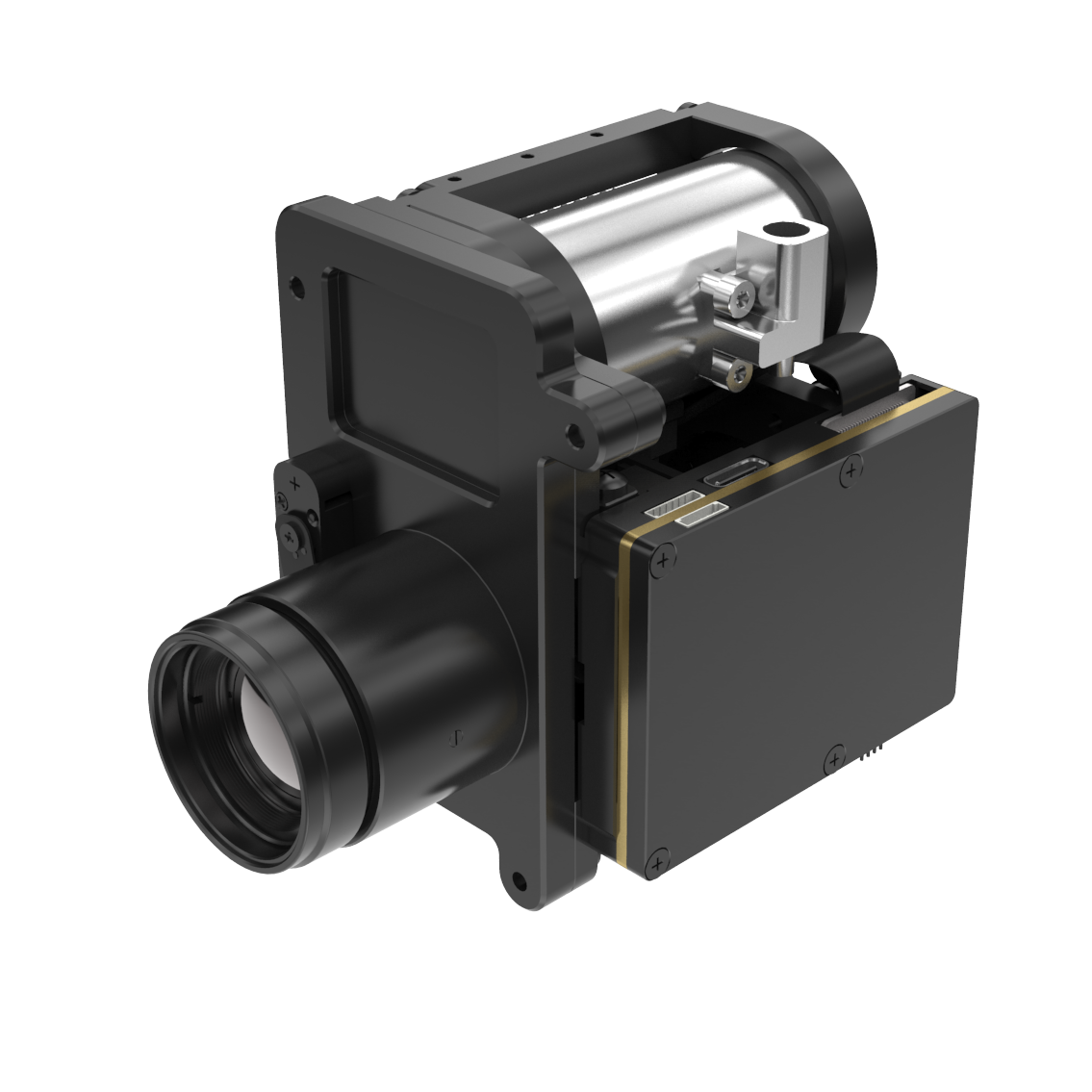

XH615HMG
640×512/15μm T2SL HOT Cooled Medium Wave Module
The XH615HMG module utilizes a 640×512/15μm high-temperature, cooled mid-wave infrared detector combined with a next-generation image processing algorithm to produce fine, high-definition 640×512 infrared images. The image size is reduced to 15μm, providing higher spatial resolution, and shorter focal length optical lenses can achieve the same detection distance. HOT technology significantly optimizes SWaP. This simple design, supporting various digital video interfaces, is widely used in miniature remote sensing applications.
• 640×512 large-area array, wide field of view
• 10μm pixel size, high spatial resolution, long-range detection
• Cameralink / USB3.0 / GiGE / HDMI / SDI / MIPI / Fiber optic image interface；
• RAW/YUV image data output
Model | XH615HMG |
Detector material | T2SL |
Resolution | 640×512 |
Pixel size | 15 μm |
Spectral range | 3.7μm±0.2μm~4.8μm±0.2μm |
Typical NETD | ≤20mK |
Frame rate | 50Hz (F4) / 30Hz (F5.5) |
Image processing algorithm | DRC, 2D/3D noise reduction, EE gain |
Analog video | PAL/NTSC |
Digital video | DVP/LVDS/USB2.0 |
Communication | USB2.0/LV-TTL |
Cooling time (23℃) | ≤3min30s@23±5℃；≤5min30s@71℃ |
Continuous | ≤7W@23±5℃ |
Operating temperature | -40~+71℃ |
Size (mm) | ≤71mm×55mm×84mm |
Weight | ≤350g |
Optics | 25mm/F2 |
Extension component | Digital Video: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode optical fiber/ |
Communication: RS422/CAN/USB3.0/GigE |
