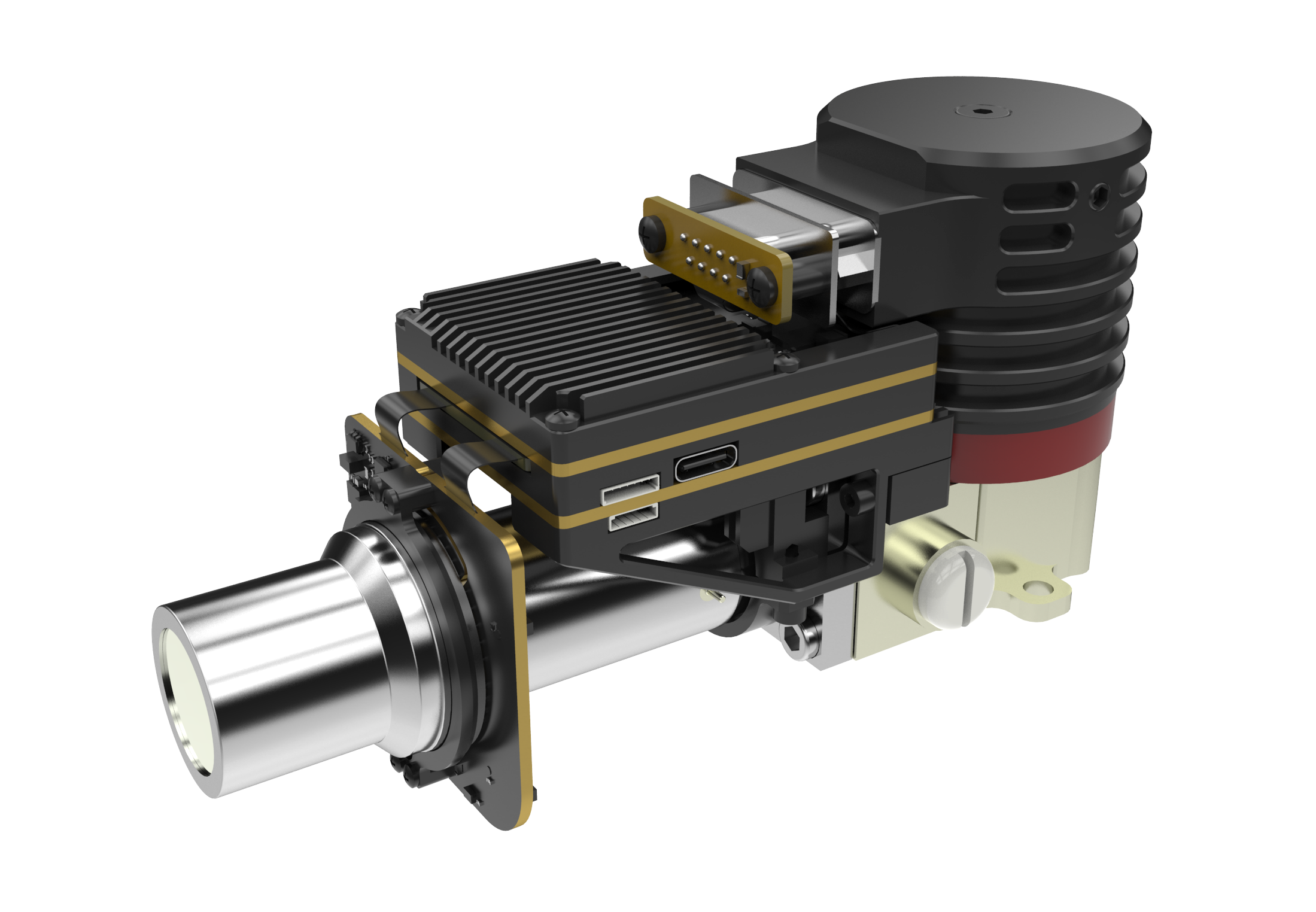

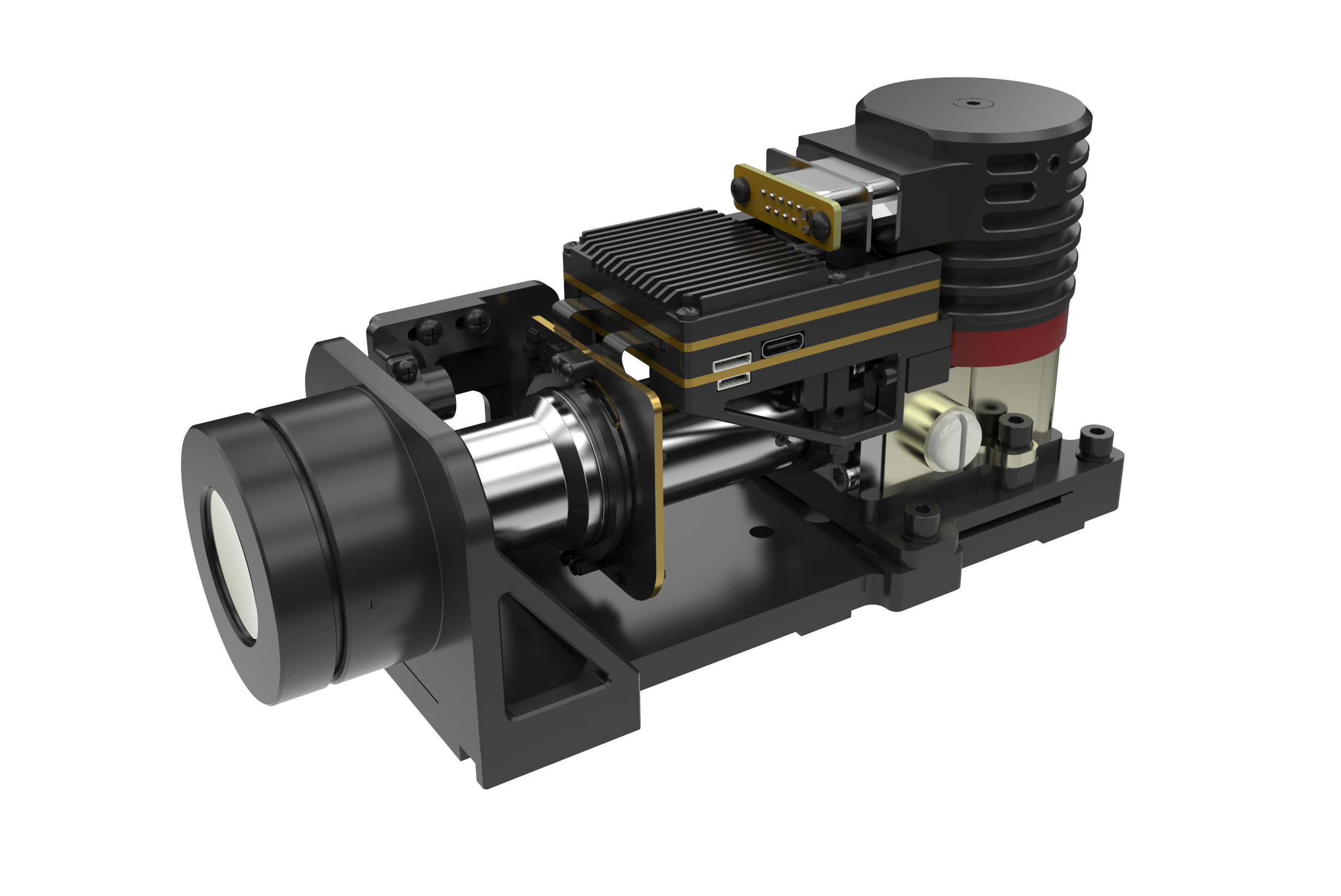

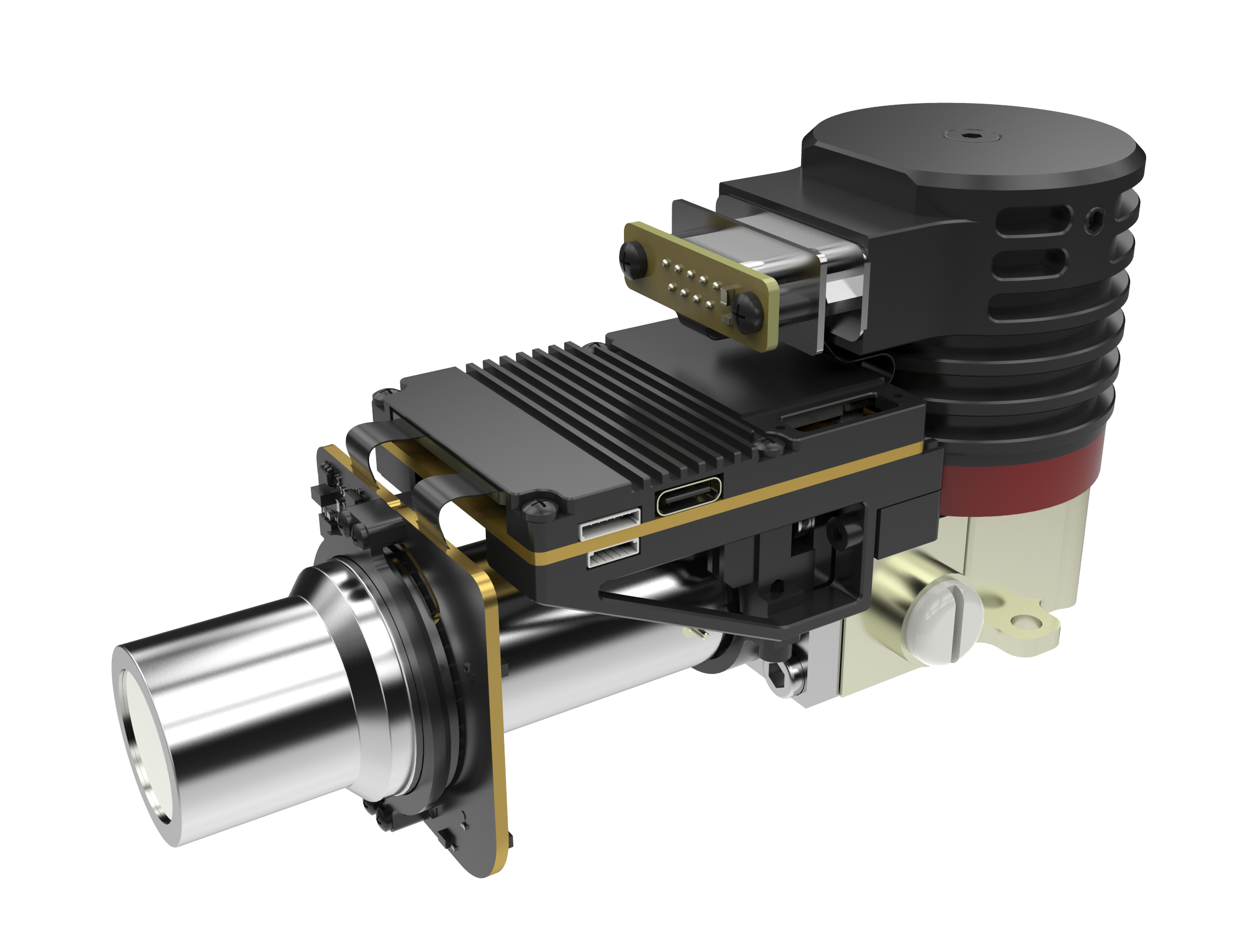

XH615LA
640×512/15μm T2SL Cooled LWIR High Definition Module
The XH615LA long-wavelength cooled infrared module, based on a 640×512/15 µm long-wavelength cooled infrared detector, is integrated with various image processing algorithms, making it particularly suitable for detecting dust or reflective interference in challenging environments. A frame rate of up to 100 Hz enables the acquisition of fast-moving targets. The mechanism is compatible with multiple interfaces and easily integrates into existing systems.
• High ability to penetrate sand and dust, adapt to complex working environments.
• Capable of detecting low-temperature objects
• Undisturbed by the reflection of the sun and sea
• Output frame rate of 50Hz / 100Hz Additional
• Cameralink / USB3.0 / GiGE / HDMI / SDI / MIPI / Fiber optic image interface；
• RAW / YUV format image data output
Model | XH615LA |
Detector material | T2SL |
Resolution | 640×512 |
Pixel size | 15 μm |
Spectral range | 7.7±0.2μm~9.4±0.3μm |
Typical NETD | ≤30mK |
Frame rate | 50/100Hz |
Image processing algorithm | DRC, 2D/3D noise reduction, EE gain |
Analog video | PAL/NTSC |
Digital video | DVP/LVDS/USB2.0 |
Communication | USB2.0/LV-TTL |
Cooling time (23℃) | ≤11W |
Operating temperature | -40~+71℃ |
Size (mm) | ≤145×58.5×77 |
Weight | ≤650g |
Optics | Fixed Focus: 25mm/F2 |
Extension component | Digital Video: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode optical fiber/ |
Communication: RS422/CAN/USB3.0/GigE |
