CL612 — Ultra-Compact Thermal Camera Core
|
|
A 17.3 mm square uncooled LWIR core with shutterless operation, MIPI / USB / CVBS output and a full SDK — built for integration, not for gimmicks.
|
|
640×512
@ 12 µm pixel pitch
|
17.3 mm
core footprint
|
|
< 0.5 W
typical power
|
5.6 g
MIPI version
|
| Request datasheet & pricing |
|
Samples available · MOQ 1 · OEM / ODM supported
|

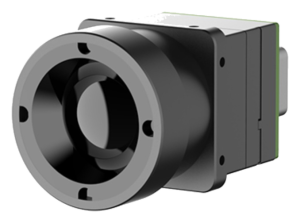

 CL612 core · 17.3 × 17.3 mm · 5.6 g (MIPI)
|
|
Captured, not rendered
Every frame below is an unedited output of the CL612 / CL612T platform.
|
 PV inspection
|
 Urban
|
 Woodland
|
 Marine
|
 Night street
|
 Infrastructure
|
|
The CL612T radiometric version adds per-pixel temperature — the PV frame above shows an 83.4 °C hot-spot reading.
|
|
Specifications
From the official CL612 user manual (V1.0.0). No marketing numbers.
|
| Detector | 640 × 512 uncooled VOx microbolometer |
| Pixel pitch | 12 µm |
| Spectral range | 8 – 14 µm |
| NETD | ≤ 40 mK @ 25 °C, F/1.0 |
| Frame rate | 50 fps (CL612) / 25 fps (CL612T) |
| Interfaces | MIPI · USB 2.0 · CVBS · BT.656 |
| Dimensions | 17.3 × 17.3 mm (13.05–20.8 mm H by version) |
| Weight | 5.6 g (MIPI) / 7.2 g (USB) / 7.6 g (CVBS) |
| Supply voltage | 4.5–5.5 VDC (USB/MIPI) · 4.5–20 VDC (CVBS) |
| Operating temp. | −40 °C to +70 °C |
| Lens options (EFL) | 9.1 / 13 / 19 / 5 mm (F1.0–F1.2) |
| FOV (9.1 mm) | 47.7° × 38.2° (61.5° diagonal) |
|
Two versions, one footprint
|
|
CL612 · imaging
50 fps video core with brightness, contrast, sharpness and gain control over digital interface. For gimbals, night-vision add-ons and embedded vision.
|
|
CL612T · radiometric
Per-pixel temperature from −20 °C to +600 °C (accuracy ±2 °C or ±2 %). For PV and electrical inspection, process monitoring and R&D.
|
|
Integration & SDK
|
|
4 interfaces
MIPI · USB · CVBS · BT.656
|
SDK included
Windows / Linux demo tools
|
|
Evaluation kit
Carrier board + lens options
|
OEM / ODM
Custom housing, logo, firmware
|
|
Tell us what you are building
Send your application and target volume — our engineers reply within one business day with a datasheet and a sample-module quotation.
